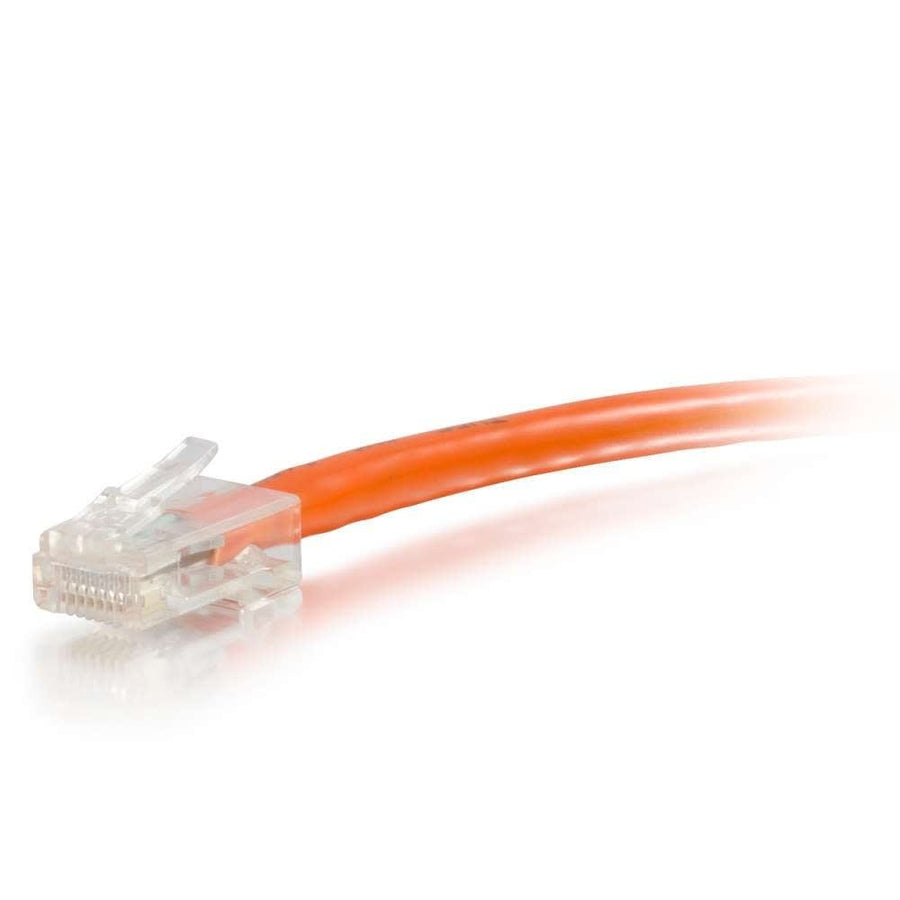

20ft (6.1m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Orange
20ft Orange Cat6 Unshielded UTP patch cable with stranded copper conductors and RJ-45 male connectors
The C2G CG04203 is a 20 ft (6.1 m) Cat6 Unshielded UTP Ethernet patch cable designed for high-bandwidth voice, data, and video distribution in Gigabit and Fast Ethernet networks. This orange cable features stranded copper conductors and a T568B wiring scheme to ensure reliable connectivity. The design minimizes Near-End Crosstalk (NEXT) levels, and each individual pair is bonded together to maintain twist-spacing throughout the entire line up to the termination point. This construction helps reduce impedance and structural return loss (SRL) while meeting all Cat6 TIA/EIA standards. This non-booted cable has a 0.24 in (6 mm) diameter and is rated for temperatures up to 75°C. It features RJ-45 male connectors on both ends and is built with a PVC jacket material for standard, non-rated applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.55 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042037 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring scheme for the C2G CG04203?
The CG04203 uses the T568B wiring scheme for all terminations.
Is this C2G patch cable shielded or unshielded?
This is an Unshielded UTP (UTP) cable, which helps minimize Near-End Crosstalk (NEXT) levels during data distribution.
What are the conductor and jacket materials?
The cable is constructed with high-quality stranded copper conductors and a standard non-rated PVC jacket.
What is the maximum temperature rating for this cable?
This patch cable is rated for operation in temperatures up to 75°C.
Can I use this for Gigabit Ethernet applications?
Yes, it is designed for Fast Ethernet and Gigabit computer networks requiring high-bandwidth video or data distribution.
