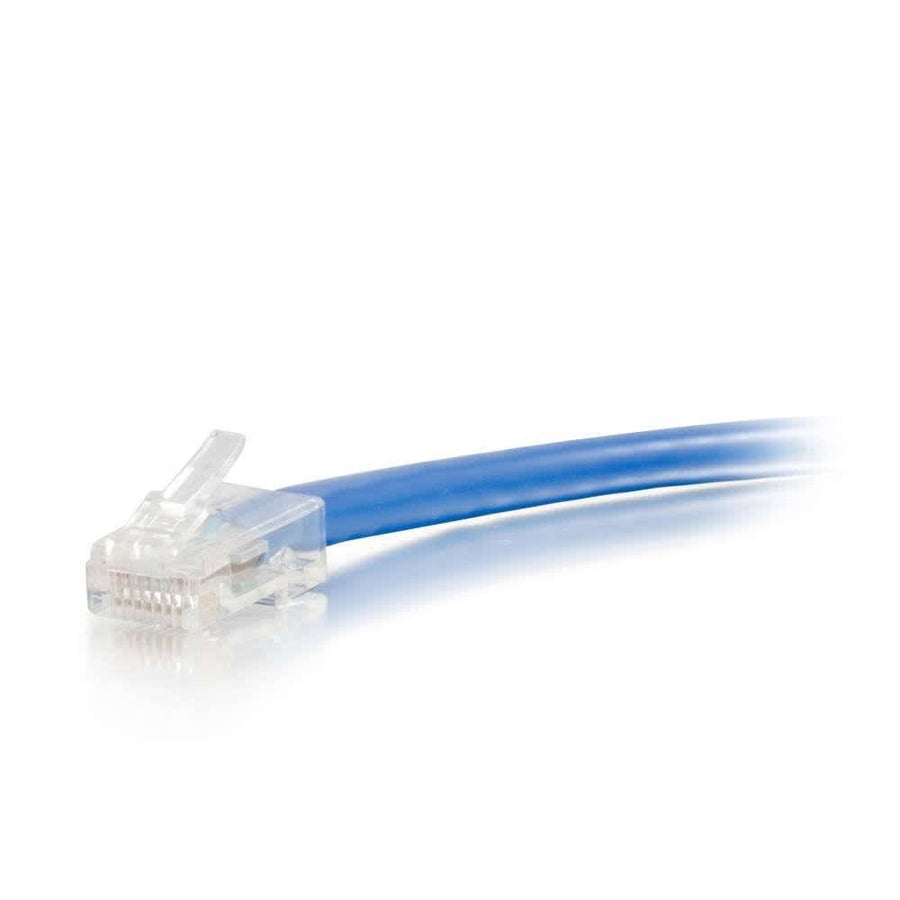

20ft (6.1m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
20ft Blue Cat6 UTP patch cable with RJ-45 male connectors and 24 AWG stranded copper conductors
The C2G CG04098 is a 20ft (6.1 m) Cat6 unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This blue cable utilizes 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the length of the line up to the termination point, which helps reduce both impedance and structural return loss (SRL). The cable features non-booted RJ-45 male connectors on both ends and follows the T568B wiring scheme. Built with a PVC jacket and rated for temperatures up to 75°C, this Cat6 cable is compliant with TIA/EIA standards. The blue color allows for easy color-coding within complex network installations to distinguish different service types or zones.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.52 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040989 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring standard for the CG04098?
This Cat6 patch cable follows the T568B wiring scheme for standard Ethernet connectivity.
Is the C2G CG04098 TAA compliant?
No, this specific SKU is not listed as TAA compliant.
What type of conductors are used in this cable?
The CG04098 features 24 AWG stranded copper conductors to help reduce Near-End Crosstalk.
Can I use this cable for Gigabit networks?
Yes, this Cat6 cable is designed for bandwidth-intensive Gigabit computer networks.
Does the CG04098 come with a warranty?
This product is backed by a lifetime warranty.
