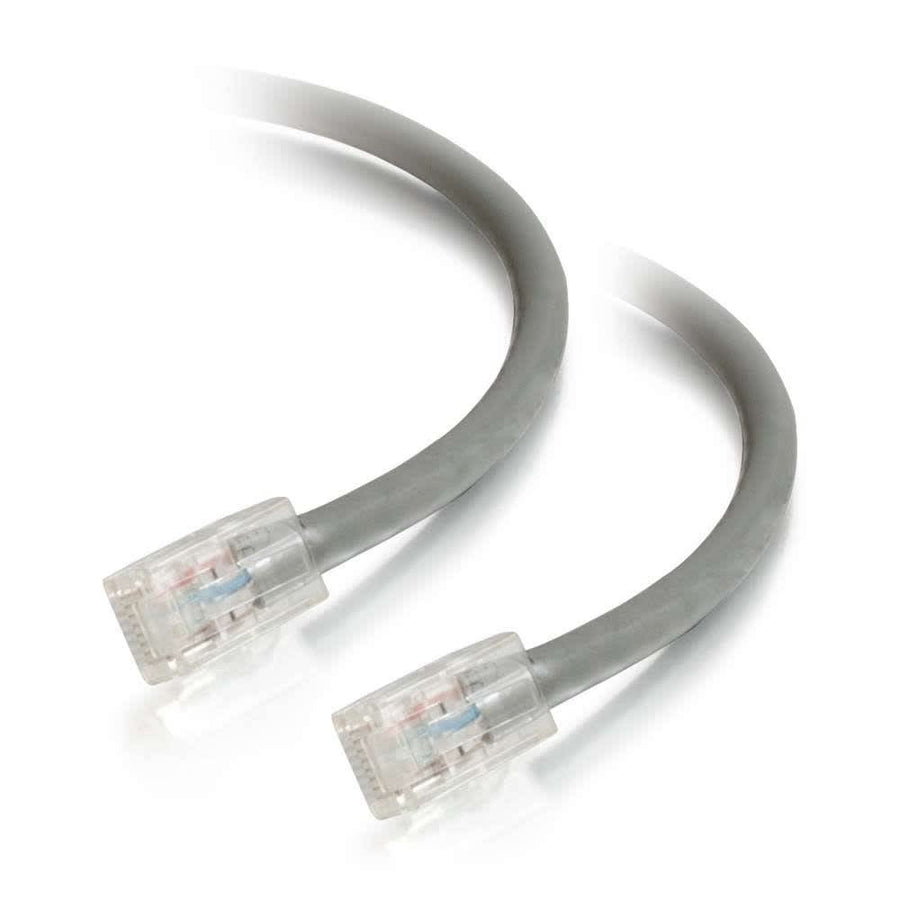

200ft (61m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
200ft gray Cat5e UTP patch cable with 24 AWG stranded copper conductors and RJ-45 male connectors
The C2G CG24637 is a 200ft (61m) Cat5e Unshielded Twisted Pair (UTP) patch cable designed for high-bandwidth voice, data, or video distribution in fast Ethernet computer networks. This cable utilizes 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels and ensure reliable connectivity. Each individual pair is bonded together to maintain consistent twist-spacing up to the termination point, which helps reduce impedance and structural return loss (SRL). The cable features a PVC jacket with a diameter of 0.21 in (5.3 mm) and uses the T568B wiring scheme for standard network compatibility. It is terminated with two RJ-45 male connectors in a non-booted configuration. This gray cable is suitable for connecting network adapters, hubs, switches, and routers. The construction meets all Cat5e TIA/EIA standards and is compliant with RoHS, REACH, and TSCA regulations, as well as NDAA 889 requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 200 ft (61 m) |
| Shield Type | UTP |
| Shipping Weight | 4.12 lbs (1.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 12
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring standard for the C2G CG24637?
The CG24637 is wired using the T568B scheme, making it ready for standard network adapter, hub, or switch connections.
What kind of conductor is used in this Cat5e cable?
This cable uses 24 AWG stranded copper conductors designed to reduce impedance and structural return loss (SRL).
Is the C2G CG24637 compliant with security standards?
Yes, this cable is compliant with NDAA 889, RoHS, REACH, and TSCA regulations.
What is the cable diameter for the CG24637?
The cable has a diameter of 0.21 in (5.3 mm) and features a PVC jacket material.
Will this cable work for high-bandwidth video distribution?
Yes, it is designed for fast Ethernet networks requiring bandwidth-intensive data or video distribution applications.
