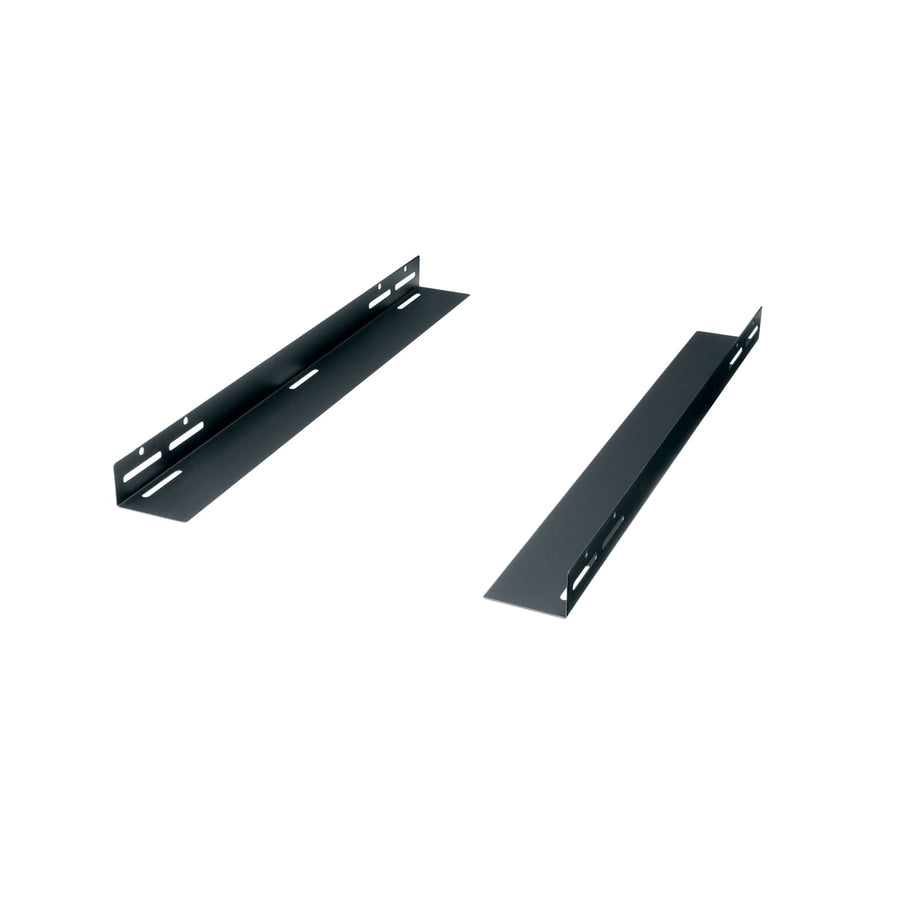

20 Inch Chassis Brackets
20 inch chassis support brackets for heavy equipment, 100 lbs capacity, sold in pairs for Z-rail installation
Middle Atlantic CSA-20 chassis support brackets provide a simple way to support heavy equipment inside a rack. By elevating the hardware, these brackets facilitate essential ventilation for high heat-generating equipment. These 20 in (50.8 cm) deep brackets are sold in pairs and feature 4 mounting points for secure placement. Each bracket has a 1.75 in (4.4 cm) height and a 3 in (7.6 cm) width. This SKU is part of a series that includes 18 in, 22 in, 24 in, and 26 in options to match varying equipment depths. Because they support weight without the use of rack screws, they offer an effective method for stabilizing heavy components. Note that these brackets are not compatible with standard rackrails; they must be attached to a Z-rail or Z-rail adapter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 1.75 in (4.4 cm) |
| Package Count | 1 |
| Shipping Weight | 2.8 lbs (1.3 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 3 in (7.6 cm) |
| Color | Black |
| Mounting Points | 4 |
| UPC | 656747125423 |
Resources
Questions about this part
Will these CSA-20 brackets work with my standard rackrails?
No, these brackets are not compatible with standard rackrails. They must be attached to a Z-rail or used with a Z-rail adapter.
What type of racks are compatible with the CSA-20?
The CSA-20 is compatible only with MRK, VRK, VMRK, and WMRK racks when used with the appropriate Z-rail or adapter.
How many brackets come in a single order?
The CSA-20 is sold in pairs, providing two brackets per package.
How much weight can the CSA-20 support?
These chassis support brackets have a weight capacity of 100 lbs (45.4 kg).
Is there a different size available for deeper equipment?
Yes, the CSA series is available in other lengths including 18 in, 22 in, 24 in, and 26 in.
