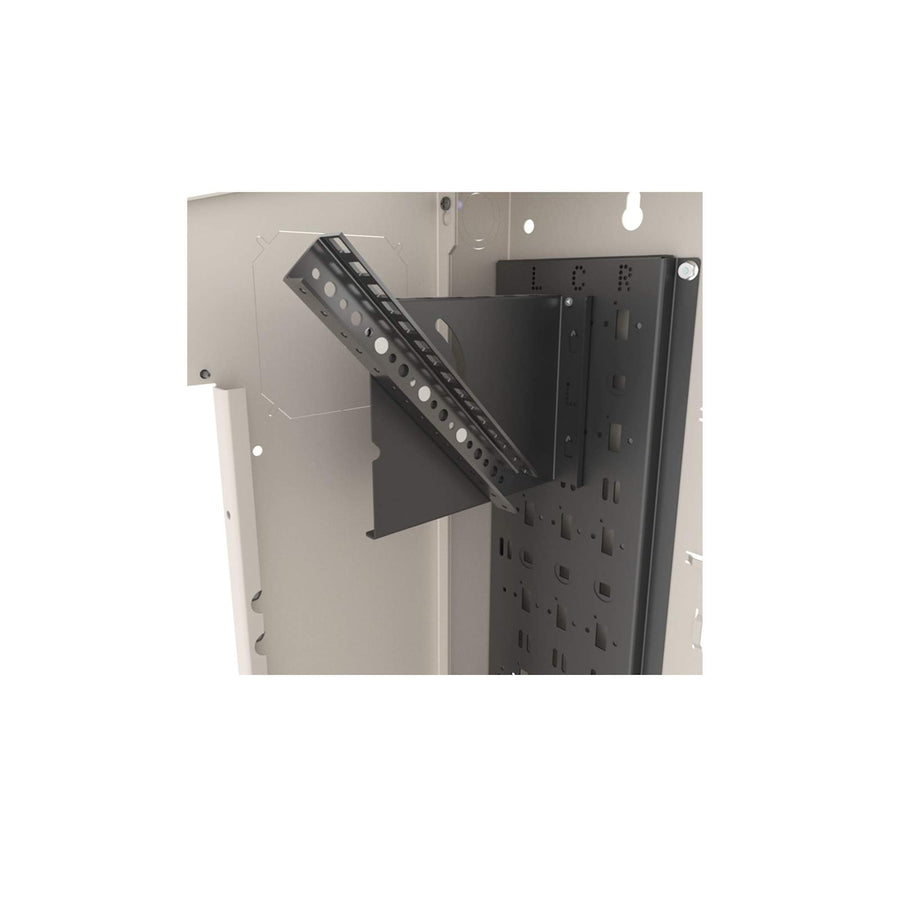

2 RU VWM Series Pivoting Rail/Mounting Bracket Kit
2 RU pivoting rail and mounting bracket kit for VWM series wall mounts, supporting both 10-32 threaded and cage nut mounting.
The VWM-RR-PIV-2 is a 2 RU pivoting rail and mounting bracket kit designed specifically for the VWM series of vertical wall mounts. This steel kit provides the necessary pivoting functionality for systems requiring adjustable orientation within a wall-mounted enclosure. It is compatible with both the 10 inch deep and 16 inch deep backpan models that include a door option. This kit accommodates two different rack rail types, allowing installers to use either 10-32 threaded holes or cage nut mounting to secure equipment. As a TAA compliant product, it meets specific requirements for government procurement and international availability. The assembly is finished in a black E-coat for durability within professional AV installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Rack Units | 2 RU |
| Shipping Weight | 4 lbs (1.8 kg) |
| Application | VWM |
| Available Internationally | Yes |
| Base Series | VWM |
| Color | Black |
| Finish | Black E-Coat |
| Material | Steel |
| Rack Rail Type | 10-32 and Cage Nut |
| TAA Compliant | Yes |
| UPC | 656747291425 |
| Certifications | Prop 65REACHRoHSTAATSCA |
Questions about this part
Which VWM backpan models is the VWM-RR-PIV-2 compatible with?
This kit is compatible with both 10 inch deep and 16 inch deep backpan models that feature a door option.
What mounting hardware options does this rack rail support?
The VWM-RR-PIV-2 supports both 10-32 threaded holes and cage nut mounting to accommodate different rack rail requirements.
Does the VWM-RR-PIV-2 support 4 RU configurations?
No, this specific SKU is rated for 2 RU; other versions in the VWM series may provide different rack unit capacities.
Is this kit suitable for TAA compliant installations?
Yes, this product is TAA compliant and suitable for international projects requiring these standards.
Which document should I use for installation instructions?
Installers should refer to the VWM Series Pivoting Mounting Rail Bracket Option Instruction Sheet for specific guidance.
