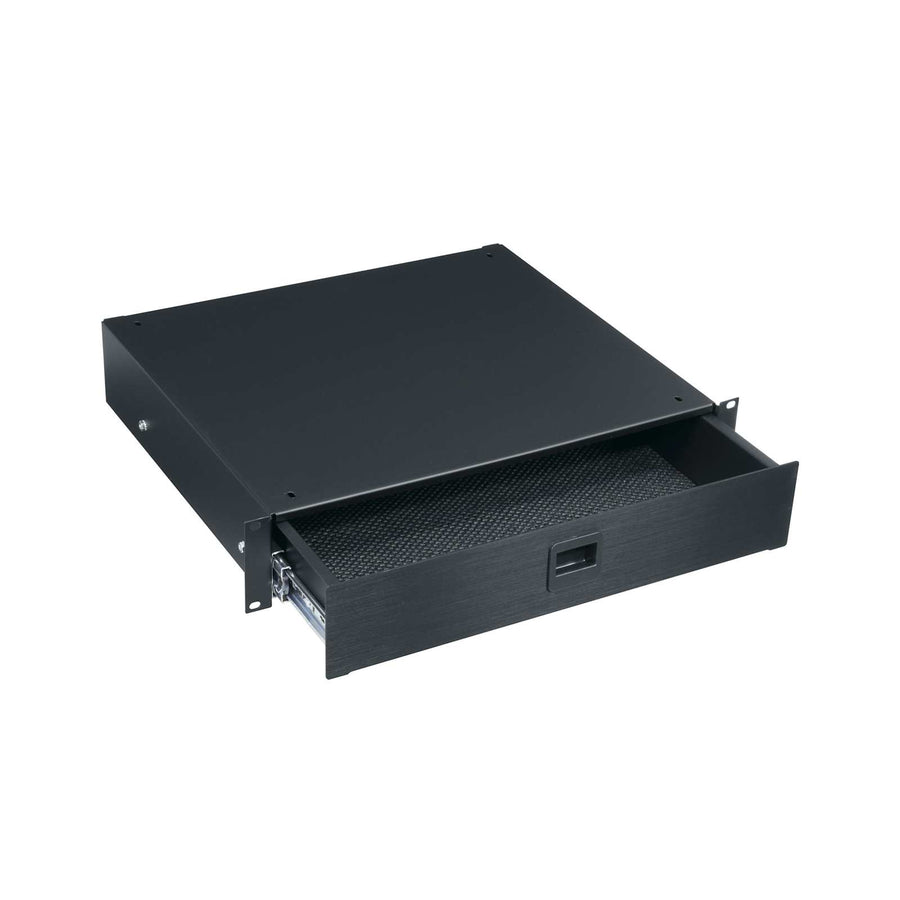

2 RU Rackmount Drawer, Black Brushed and Anodized
2 RU heavy duty rackmount drawer with a 50 lb. UL load capacity and black brushed and anodized finish
The Middle Atlantic D2 is a 2 RU heavy-duty storage drawer designed for secure equipment organization within a standard 19-inch rack. Constructed from rugged steel, this D-TD Series drawer features a black brushed and anodized face finish and utilizes a spring-loaded latch for easy access. It is engineered to support a UL load capacity of 50 lbs (22.7 kg), making it suitable for heavier components. The unit measures 15-7/8" wide by 14-1/2" deep, with a total height of 3.5 in (8.9 cm). For organized cable management, the drawer includes a rear cable grommet and comes with a drawer mat. This specific SKU features a brushed and anodized finish, distinguishing it from the textured black powder coat version in the same series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.45 in (39.2 cm) |
| Height | 3.5 in (8.9 cm) |
| Product Weight | 11.4 lbs (5.2 kg) |
| Rack Units | 2 RU |
| Shipping Weight | 17 lbs (7.7 kg) |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Width | 19 in (48.3 cm) |
| Finish | Brushed and Anodized |
| Lock | No |
| Material | Steel |
| Mounting Points | 2 |
| UPC | 656747004391 |
Resources
You'll need these with it
Questions about this part
What is the weight capacity of the Middle Atlantic D2?
The D2 is rated with a UL load capacity of 50 lbs (22.7 kg).
Does the D2 drawer include a mat and cable management?
Yes, the drawer includes a drawer mat and a rear cable grommet as standard features.
How is the D2 finished compared to other D-TD drawers?
The D2 features a black brushed and anodized finish, whereas other options in the series may feature a textured black powder coat.
Can I add additional protection inside the drawer?
Yes, the FI-2 2 RU Foam Drawer Insert is available as a compatible accessory for this drawer.
What are the physical dimensions of the D2 drawer?
The drawer has a height of 3.5 in (8.9 cm), a width of 19 in (48.3 cm), and a depth of 15.45 in (39.2 cm).
