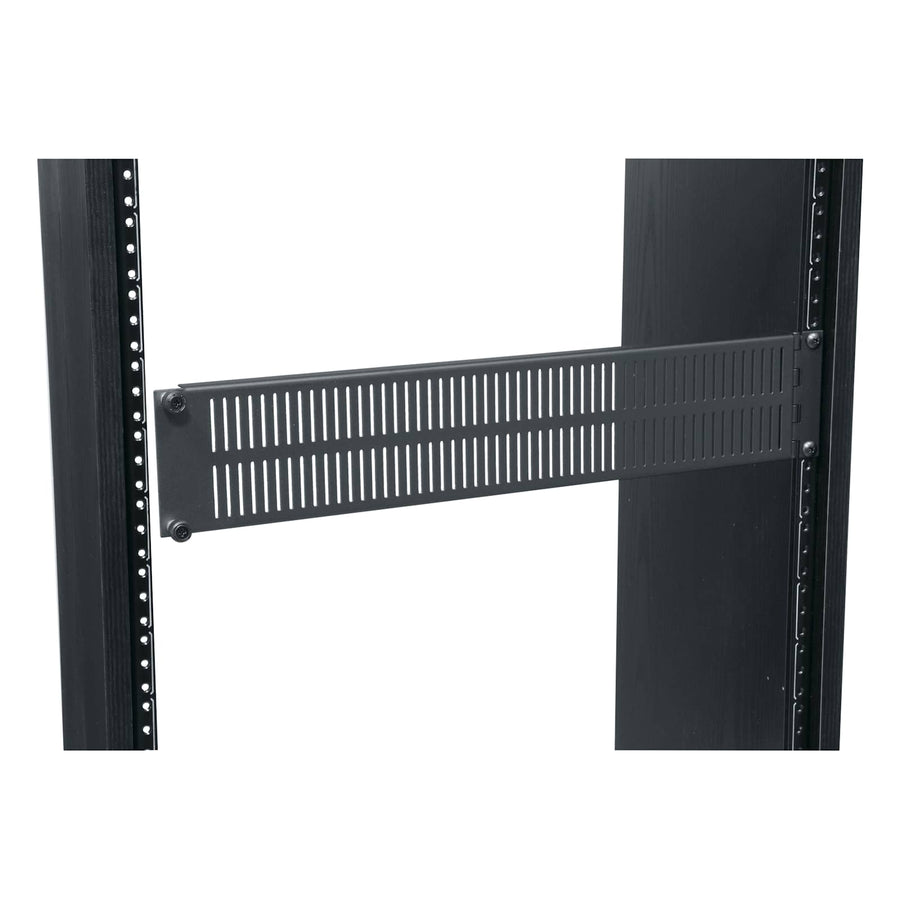

2 RU Rack Vent Panel, Hinged
2 RU vented rack panel with a hinged design for rapid interior access and 17% open area for airflow
The APV-2 is a 2 RU vented rack panel designed to provide efficient airflow while preventing accidental contact with internal components. Fabricated from 13-gauge steel with a Black Powder Coat finish, this panel is easily machinable to accommodate custom requirements. The hinged design allows installers to quickly access the rear of connector panels or other rack-mounted equipment without removing the panel entirely. This model features two mounting points and utilizes captive 10-32 threaded thumbscrews, which allow for tool-free operation and prevent hardware from being lost inside the rack. This TAA compliant accessory is part of the Vented Rack Panel series and is intended for use in 19-inch rack applications where ventilation and accessibility are required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.4 in (3.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Package Count | 1 |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 1.3 lbs (0.6 kg) |
| Vent Open Area Percentage | 17 % |
| Width | 19 in (48.3 cm) |
All other specifications 6
| Finish | Black Powder Coat |
| Hinged | Yes |
| Light Blocking | No |
| Mounting Points | 2 |
| Style | Hinged |
| UPC | 656747066634 |
Resources
Questions about this part
How does the APV-2 handle airflow?
The APV-2 features a 17% vent open area, which allows for necessary airflow while still providing a physical barrier to prevent accidental contact.
Will I need tools to open the access panel?
No, the APV-2 is equipped with captive 10-32 threaded thumbscrews that allow for tool-free access to the rack interior.
Can this panel be modified for custom mounting?
Yes, the 13-gauge steel construction is designed to be easily machinable for specific installation requirements.
Is the APV-2 a TAA compliant part?
Yes, the APV-2 is listed as TAA compliant.
How does the APV-2 differ from other panels in the series?
The APV-2 is a 2 RU hinged version; other variants in the series may offer different rack unit heights from 1 RU to 6 RU or different finish options.
