2 GHz 4-Way Vertical Coax Splitter
4-way vertical coax splitter for MDU enclosures, supporting 2 GHz transmission speeds and 5 to 2050 MHz bandwidth

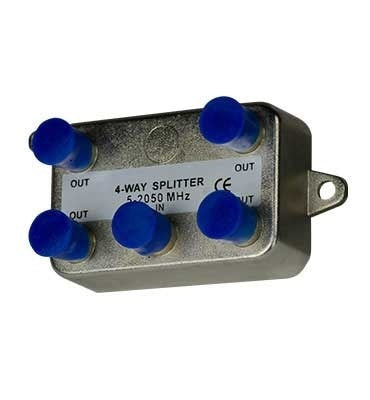

The On-Q VM0204 is a 4-way vertically oriented coax splitter designed for basic structured wiring applications. This component is intended to be specified into an EN0800 enclosure, making it a standard choice for multi-dwelling unit (MDU) installations and small residential homes. It supports 2 GHz transmission speeds with a bandwidth range of 5 to 2050 MHz. When installed, the unit mounts within a single-bay inside an MDU structured wiring enclosure. For signal integrity, this splitter features a typical maximum insertion loss of 10.5 dB.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Length | 1.22 in (3.1 cm) |
| Number of Ports | 4 |
Resources
Questions about this part
Where should the VM0204 be installed?
This splitter is designed to mount in a single-bay inside an EN0800 MDU structured wiring enclosure.
What bandwidth does this 4-way splitter support?
The VM0204 supports a bandwidth range from 5 to 2050 MHz and handles 2 GHz transmission speeds.
What is the maximum insertion loss for the VM0204?
The typical maximum insertion loss for this vertical coax splitter is 10.5 dB.
Is this splitter suitable for multi-dwelling units?
Yes, it is specifically designed for structured wiring in MDUs and small homes.
