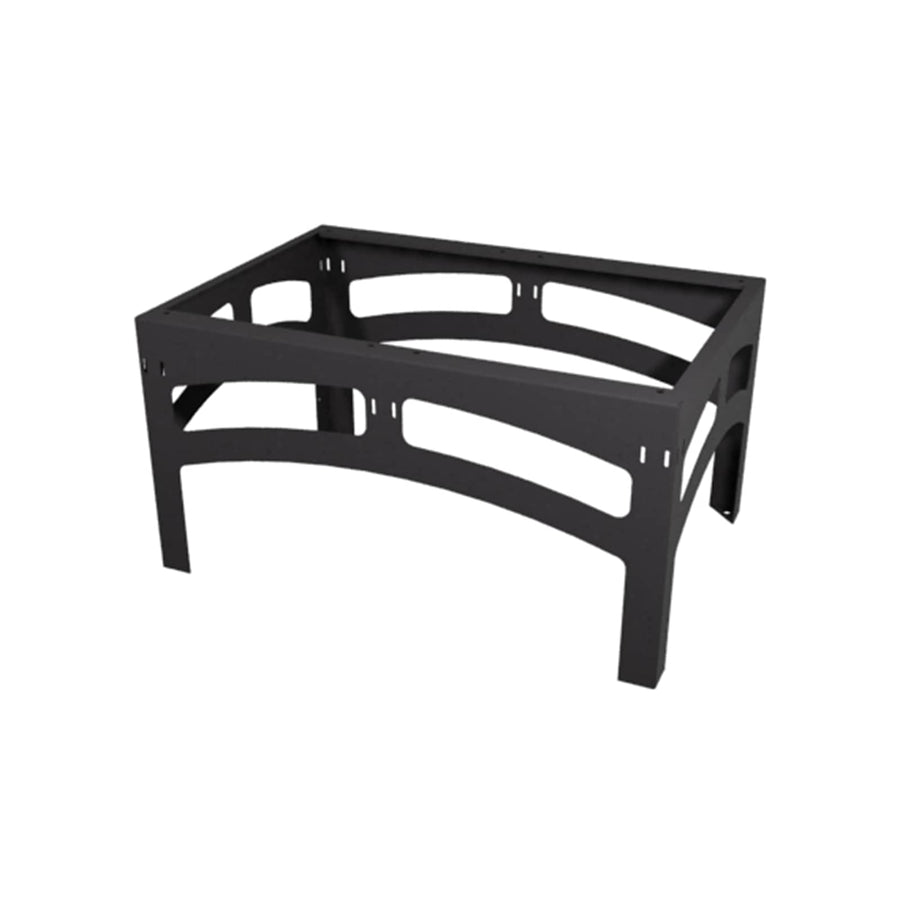

2 Bay Seismic Riser Base for 38 Inch Deep BGR Racks
2-bay seismic riser base for 38 in (96.5 cm) deep BGR racks, supporting up to 1750 lbs (793.8 kg) with OSHPD 96-01027 certification
The SRB-2-BGR-3824 is a 2-bay seismic riser base specifically engineered for use with 38 in (96.5 cm) deep BGR series racks. This heavy-gauge welded steel component provides a critical foundation for seismic-rated installations, featuring an OSHPD 96-01027 number and ASCE 7-10 compliance. Beyond its primary structural role, it functions as a lower cable chase, allowing installers to pass cabling between racks through the base. Its design facilitates field rough-in, allowing the base to be positioned and secured before the final arrival of the racks and enclosures. The unit is finished in a textured black powder coat and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 38 in (96.5 cm) |
| Height | 24 in (61 cm) |
| Shipping Weight | 106 lbs (48.1 kg) |
| Weight Capacity | 1750 lbs (793.8 kg) |
| Width | 46.03 in (116.9 cm) |
| Base Series | BGR |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
All other specifications 6
| Number of Bays | 2 |
| Seismic Rated | Yes |
| UPC | 656747139871 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1750 lbs (793.8 kg) |
Resources
Questions about this part
Will this base fit my BGR series racks?
This SRB-2-BGR-3824 is designed specifically for the 2-bay BGR base series with a depth of 38 in (96.5 cm).
What is the seismic load capacity of the SRB-2-BGR-3824?
The base has a rated seismic load capacity of 1750 lbs (793.8 kg) and carries OSHPD 96-01027 certification.
What are the main structural benefits of this riser base?
Constructed from heavy-gauge welded steel, it allows for field rough-in before racks arrive and acts as a lower cable chase for passing cables between bays.
Is this product TAA compliant?
Yes, the SRB-2-BGR-3824 is TAA compliant.
Which documents are available for submittals?
Installers can access the SRB Series Seismic Riser Base A&E Specification Sheet and the SRB Series Instruction Sheet for project documentation.
