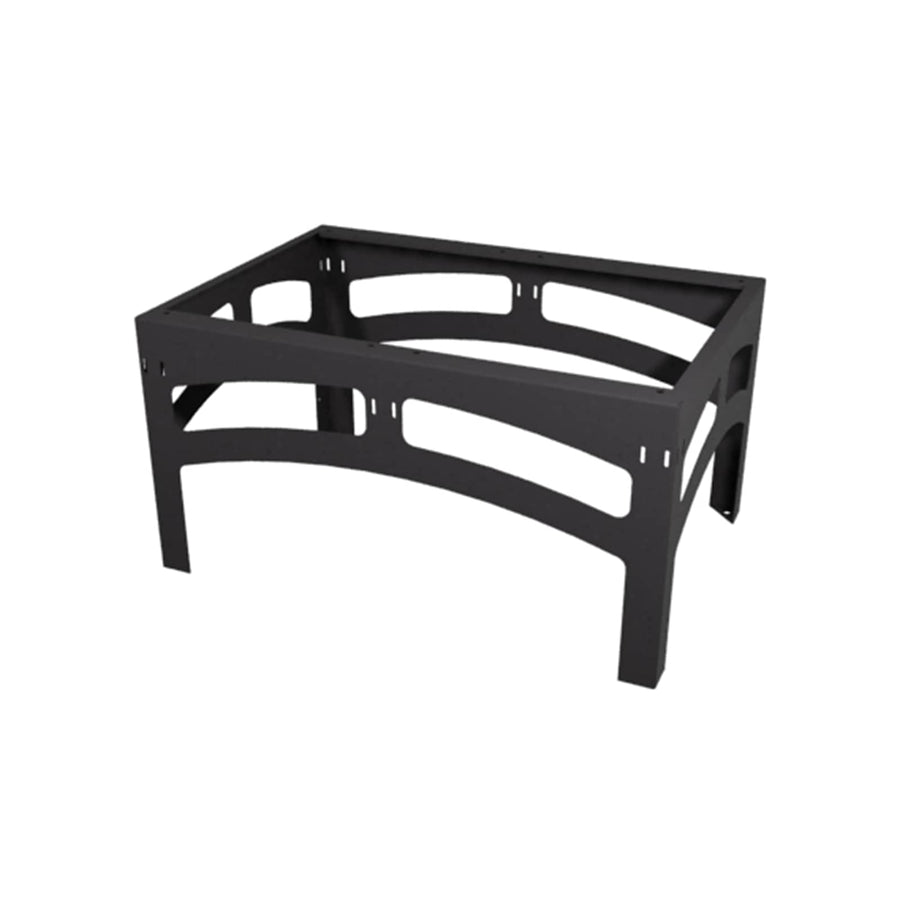

2 Bay Seismic Riser Base for 36 Inch Deep MRK, VRK Racks
Seismic rated 2-bay riser base for 36 inch deep MRK and VRK racks, 1750 lbs seismic load capacity
The SRB-2-MRK-3624 is a 2-bay seismic riser base designed to support 36 in (91.4 cm) deep MRK or VRK series racks and enclosures. Constructed from heavy-gauge welded steel with a textured black powder coat finish, this base is engineered to manage seismic loads up to 1750 lbs (793.8 kg). This component allows installers to perform field rough-in for structural requirements before the actual racks arrive on-site. Additionally, it functions as a lower cable chase to facilitate cable management between bays. This TAA compliant unit is seismic rated and meets ASCE 7-10 standards, with OSHPD certification number 96-01027.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 24 in (61 cm) |
| Shipping Weight | 45 lbs (20.4 kg) |
| Weight Capacity | 1750 lbs (793.8 kg) |
| Width | 44.03 in (111.8 cm) |
| Base Series | MRK or VRK |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
All other specifications 6
| Number of Bays | 2 |
| Seismic Rated | Yes |
| UPC | 656747068300 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1750 lbs (793.8 kg) |
Resources
Questions about this part
Will the SRB-2-MRK-3624 fit my MRK or VRK racks?
This 2-bay riser base is specifically designed for use with 36 in (91.4 cm) deep MRK or VRK series racks.
What is the seismic load capacity of this riser base?
The SRB-2-MRK-3624 has a seismic load capacity of 1750 lbs (793.8 kg) and meets ASCE 7-10 standards.
Is this product suitable for OSHPD requirements?
Yes, this seismic riser base is OSHPD certified under number 96-01027.
How can I use this base during the initial installation phase?
You can use this base to complete field rough-in work before the final racks and enclosures arrive on the job site.
Does this base assist with cable management?
Yes, the unit acts as a lower cable chase for passing cables between the two bays.
