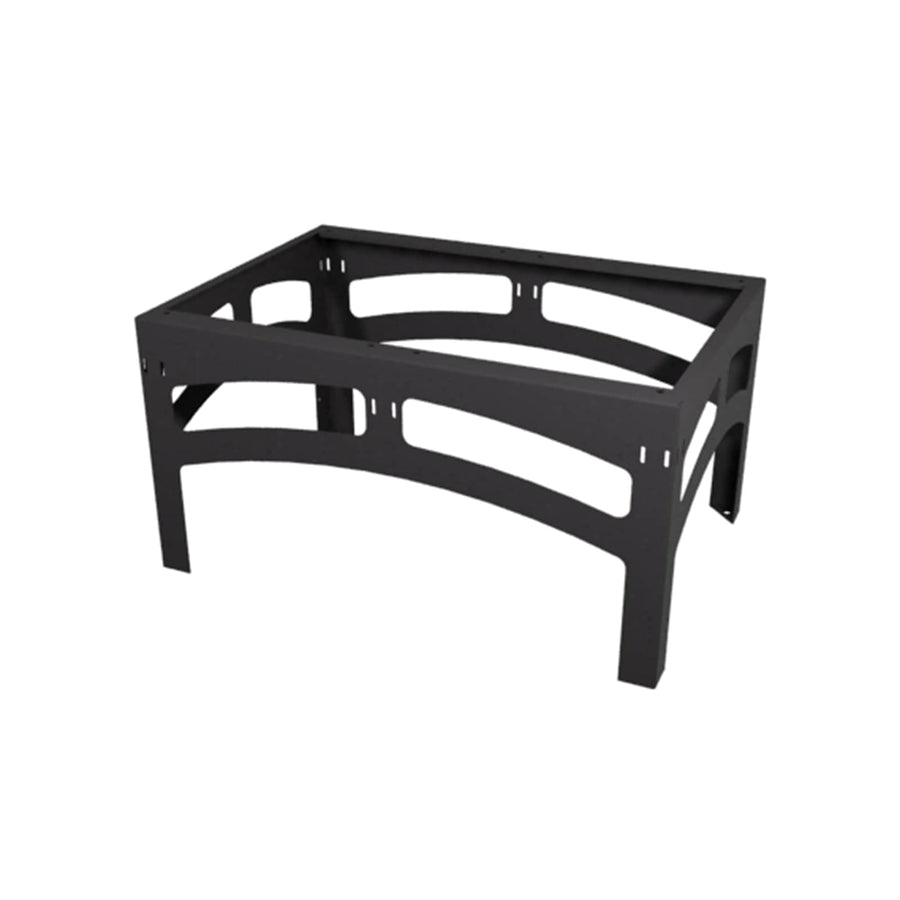

2 Bay Seismic Riser Base for 32 Inch Deep WRK Racks
2-bay seismic riser base for 32 inch deep WRK racks, 1750 lbs seismic load capacity, OSHPD 96-01027 certified
The SRB-2-WRK-3224 is a 2-bay seismic riser base engineered specifically for the 32 in (81.3 cm) deep WRK series racks. This heavy-gauge welded steel component provides a robust foundation for seismic-rated installations, offering a seismic load capacity of 1750 lbs (793.8 kg). By utilizing this riser base, installers can perform field rough-ins before the actual racks or enclosures arrive on site. The design also functions as a lower cable chase, facilitating the efficient passage of cabling between the two bays. This unit features a textured black powder coat finish and is OSHPD 96-01027 certified. This base is designed to meet ASCE 7-10 standards for seismic structural integrity in professional integration environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 24 in (61 cm) |
| Weight Capacity | 1750 lbs (793.8 kg) |
| Width | 48.53 in (123.3 cm) |
| Base Series | WRK |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
| Number of Bays | 2 |
All other specifications 5
| Seismic Rated | Yes |
| UPC | 656747124617 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1750 lbs (793.8 kg) |
Resources
Questions about this part
Will this riser base work with my WRK series racks?
The SRB-2-WRK-3224 is designed specifically for the WRK base series racks that have a 32 in (81.3 cm) depth.
What is the seismic rating for the SRB-2-WRK-3224?
This riser base is seismic rated with an ASCE 7-10 compliance and holds OSHPD 96-01027 certification.
What is the total seismic load capacity for this 2-bay base?
The unit has a rated seismic load capacity of 1750 lbs (793.8 kg).
How can this base help during the installation process?
The design allows for field rough-in before racks arrive and acts as a cable chase for passing wiring between the two bays.
Where can I find technical drawings for submittals?
CAD technical specification drawings (dwg) are available in the Resources tab for your submittal requirements.
