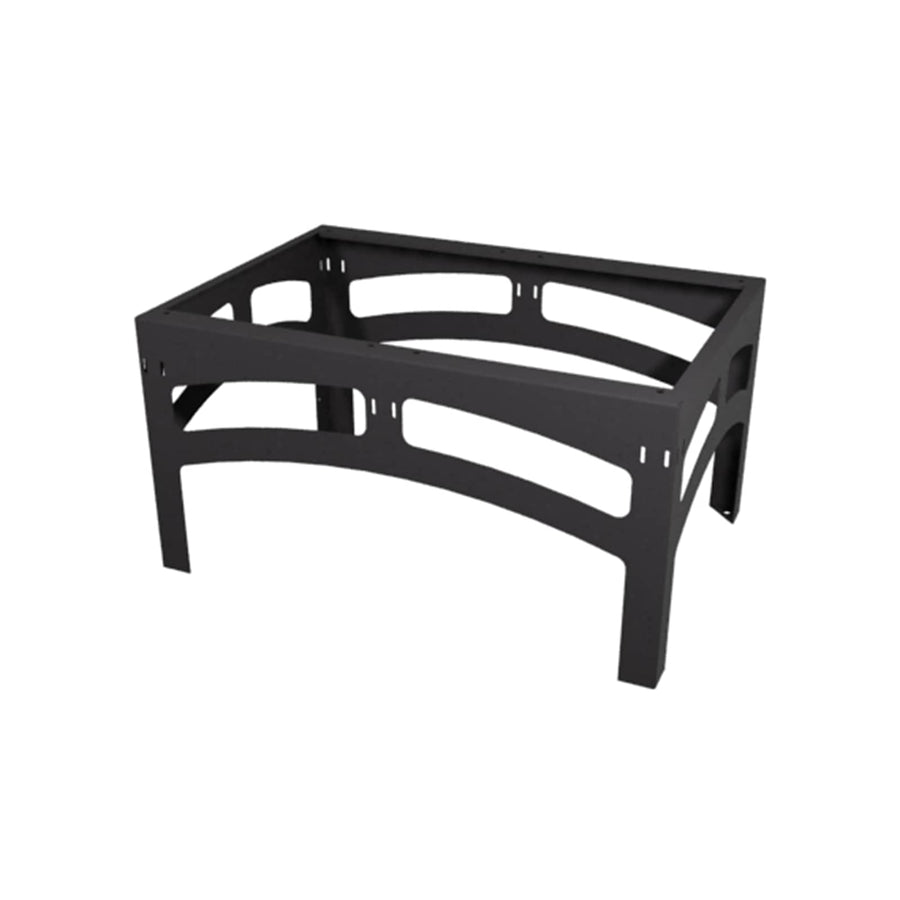

2 Bay Seismic Riser Base for 31 Inch Deep DRK Racks
2-bay seismic riser base for 31" deep DRK racks, featuring a 1750 lbs seismic load capacity and OSHPD certification
The SRB-2-DRK-3124 is a 2-bay seismic riser base designed specifically for use with 31 in (78.7 cm) deep DRK series racks. Built from heavy-gauge welded steel with a textured black powder coat finish, this component provides a robust foundation for critical equipment in seismic zones. It is engineered to allow for field rough-in of utilities prior to the arrival of the actual racks and enclosures. This riser base also serves as a lower cable chase, facilitating the passage of cables between the two bays. This unit is Seismic Rated and carries ASCE 7-10 and OSHPD 96-01027 compliance. It is designed to manage a seismic load capacity of 1750 lbs (793.8 kg) and a total weight capacity of 1750 lbs (793.8 kg). The base measures 60.03 in (152.5 cm) in width and 24 in (61 cm) in height.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31 in (78.7 cm) |
| Height | 24 in (61 cm) |
| Weight Capacity | 1750 lbs (793.8 kg) |
| Width | 60.03 in (152.5 cm) |
| Base Series | DRK |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
| Number of Bays | 2 |
All other specifications 5
| Seismic Rated | Yes |
| UPC | 656747181214 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1750 lbs (793.8 kg) |
Resources
Questions about this part
Will the SRB-2-DRK-3124 fit my DRK series racks?
Yes, this riser base is designed specifically for the DRK base series with a 31 in (78.7 cm) depth.
What is the seismic load capacity of the SRB-2-DRK-3124?
This 2-bay base has a seismic load capacity and weight capacity of 1750 lbs (793.8 kg).
Does this riser base meet seismic certification requirements?
Yes, it is Seismic Rated and meets ASCE 7-10 and OSHPD 96-01027 standards.
How can I use this base during the rough-in phase?
The SRB-2-DRK-3124 allows for field rough-in of infrastructure before your racks and enclosures arrive on site.
Can I use this for cable management between bays?
Yes, it acts as a lower cable chase to help pass cabling between the two bays.
