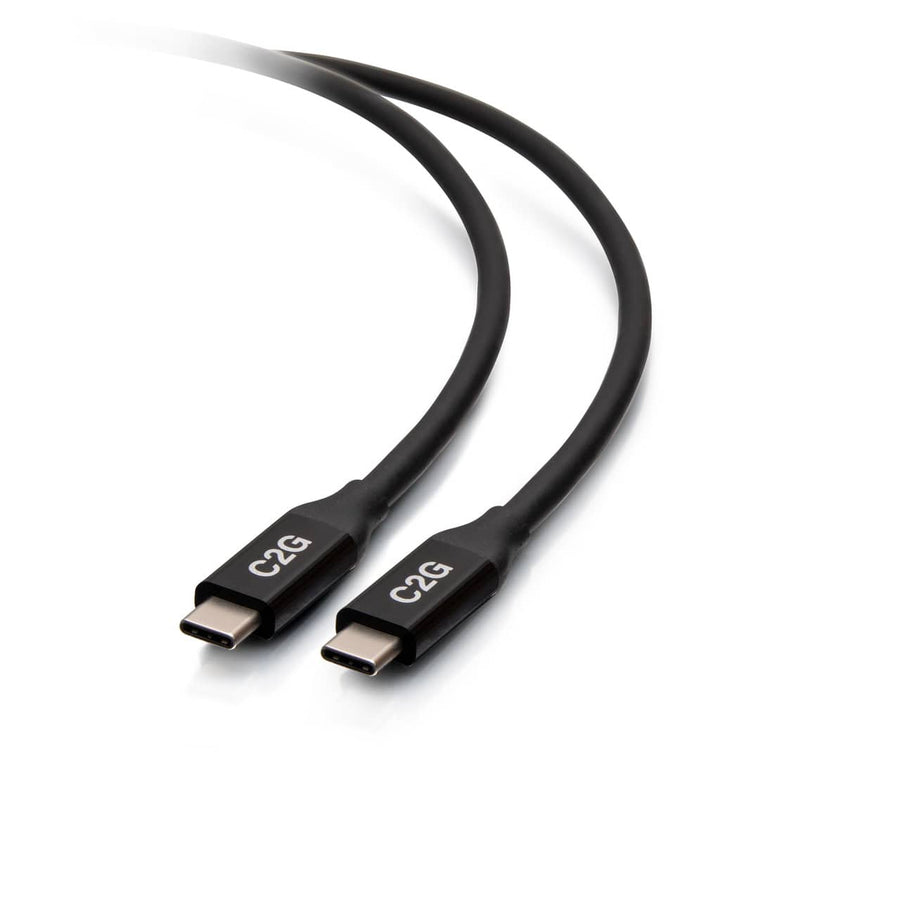

2.5ft (0.8m) USB-C® Male to USB-C Male Cable (20V 5A) - USB4® (40Gbps)
USB4 USB-C to USB-C cable supporting 40Gbps data transfer and 100W Power Delivery, length 2.5 ft (0.8 m)
The C2G28877 is a 2.5 ft (0.8 m) USB-C Male to USB-C Male cable designed for high-performance USB4 environments. This cable supports bidirectional signal transmission with data transfer rates up to 40Gbps, making it capable of transferring a 5GB file in approximately one second. It provides video input and output support for USB-C, allowing for 8K video content delivery. For power requirements, this cable supports Power Delivery up to 100W (20V, 5A), ensuring laptops, tablets, and phones receive rapid charging. The USB4 specification ensures backward compatibility with USB 3.2 and Thunderbolt 3 devices. The cable features a 0.2 in (5 mm) diameter with a TPE jacket and housing construction, which is recyclable. Operating within a temperature range of 32° to 122°F (0° to 50°C) and a humidity range of 15% to 85% RH (non-condensing), this cable provides a plug-and-play connection without the need for additional drivers.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.2 in (5 mm) |
| Cable Length | 2.5 ft (0.8 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Power Delivery | 100 W |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 18
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Voltage | 20 V |
| Color | Black |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) USB-C Male |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120288770 |
| Video Input Support | USB-C |
| Video Output Support | USB-C |
| Certifications | NDAA 889Prop 65REACHTSCA |
| Data Transfer Rate | 40 GBPS |
| Jacket Material | TPE |
| Warranty | Lifetime |
Questions about this part
Will this C2G28877 cable work with my Thunderbolt 3 devices?
Yes, this USB4 cable is backward compatible with Thunderbolt 3 and USB 3.2 specifications.
What is the maximum power delivery for this USB-C cable?
This cable supports Power Delivery up to 100W at 20V and 5A for rapid charging of laptops and tablets.
Can I use this cable for 8K video transmission?
Yes, the cable supports video input and output for USB-C, enabling up to 8K video content support.
How fast can I transfer data with the C2G28877?
The cable supports data transfer rates up to 40Gbps, which allows for transferring a 5GB file in about one second.
What is the difference between this and the other C2G USB4 cables?
This SKU is the 2.5 ft (0.8 m) version; this series is also available in a 3.3 ft length.
