1ft (0.3m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Purple
1ft TAA-compliant Cat6a shielded patch cable, purple, with snagless RJ45 connectors and CMR rating

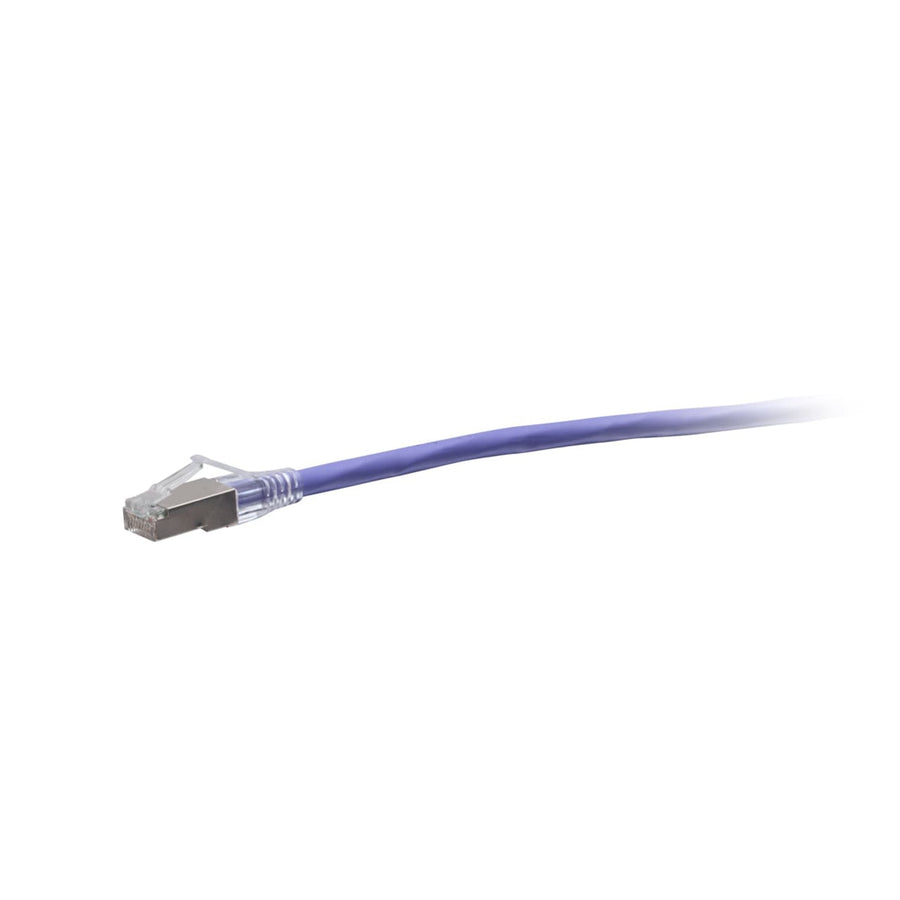

The C2G43939 is a 1ft (0.3m) TAA-compliant Cat6a snagless shielded (STP) network cable finished in purple. This passive, stranded copper cable is constructed using high-quality, made in the USA raw cable to ensure consistent and reliable performance for high-speed 10GBASE-T networks. It features 50-micron gold-plated contacts to improve signal integrity across high-bandwidth applications. The snagless RJ45 connector design is specifically engineered to protect the clips from being snapped off during high insertion cycles. This cable is a Shielded STP (Shielded Twisted Pair) solution designed to protect 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. Rated for CMR jacket applications, this PVC-jacketed cable is suitable for use in various environments, including connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Its 0.24 in (6 mm) diameter and purple color allow for easy color-coding within a professional installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439394 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43939 TAA compliant for government projects?
Yes, the C2G43939 is TAA compliant, making it approved for use in United States government projects and facilities.
Will this C2G43939 cable support 10 Gigabit Ethernet?
Yes, this Cat6a shielded cable is designed for 10GBASE-T ports and handles bandwidth-intensive applications by reducing impedance and structural return loss (SRL).
What is the wiring scheme for this C2G43939 patch cable?
The C2G43939 uses a standard T568B wiring scheme and features RJ-45 male connectors on both ends.
How does the snagless design benefit installers?
The snagless RJ45 design protects the connector clips from being snapped off, which is particularly beneficial in applications involving high insertion cycles.
What environmental ratings does the C2G43939 have?
This cable features a CMR rated PVC jacket and is designed to operate in temperatures ranging from -4° to 167°F (-20° to 75°C).
