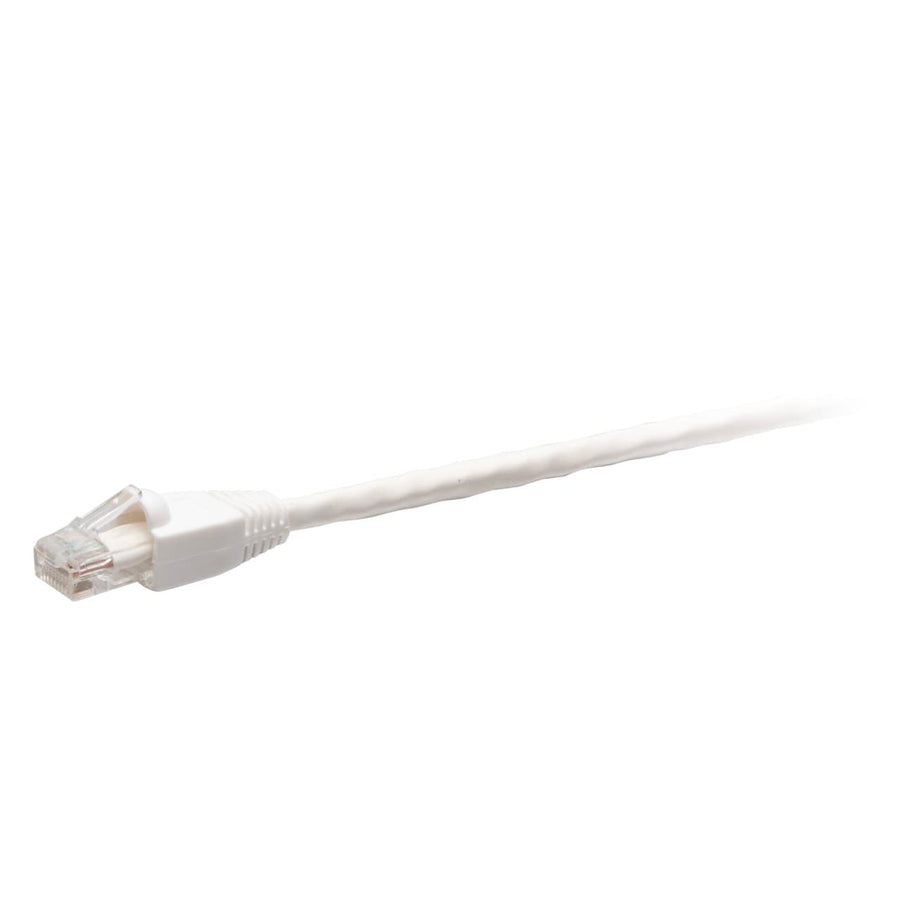

1ft (0.3m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
White 1ft Cat6 snagless UTP network cable, TAA-compliant and CMR rated for reliable high-speed connectivity
The C2G43570 is a 1ft (0.3m) TAA-compliant Cat6 snagless unshielded (UTP) network cable finished in white. Engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, this passive cable supports 1000BASE-T (1 Gigabit Ethernet) applications. It is constructed with high-quality, made in the USA stranded copper cabling that features a 600 MHz maximum frequency to ensure consistent performance for servers, switches, routers, and hubs. The cable utilizes a 24 AWG wire gauge and features a snagless RJ45 connector design, which includes a molded boot to protect the clips from being snapped off during high insertion cycle applications. Each connector is equipped with 50-micron gold-plated contacts to improve signal integrity. This CMR rated, riser-rated cable uses a PVC jacket and is suitable for a wide operating temperature range of -4° - 167°F (-20° - 75°C). As a TAA-compliant solution, it is approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435709 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43570 TAA compliant?
Yes, this cable is TAA-compliant and is approved for use in United States government projects and facilities.
What is the maximum frequency and data speed for this Cat6 cable?
This Cat6 cable supports 1000BASE-T (1 Gigabit Ethernet) and features a 600 MHz maximum frequency.
What type of jack or connector does this cable use?
It uses a snagless RJ45 male to RJ45 male connector design with 50-micron gold-plated contacts.
What is the temperature rating for this network cable?
The cable is rated for an operating temperature range of -4° - 167°F (-20° - 75°C).
What is the jacket rating for the C2G43570?
This is a CMR rated, riser-rated cable with a PVC jacket material.
