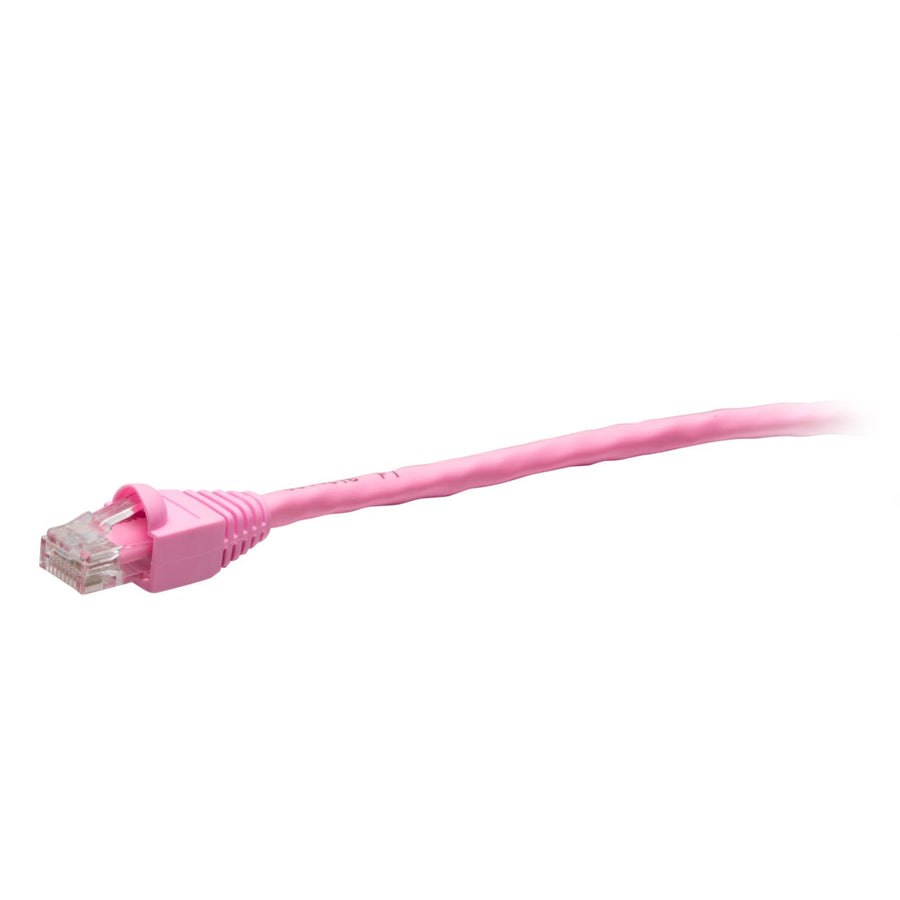

1ft (0.3m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
Pink 1ft Cat6 Unshielded (UTP) snagless network cable, TAA-compliant and made in the USA for government and commercial projects
The C2G43591 is a 1 ft (0.3 m) TAA-compliant Cat6 Unshielded (UTP) network cable designed for high-performance connectivity in sensitive environments. This pink snagless cable is built with high-quality, made in the USA stranded copper conductors and features a 24 AWG wire gauge. It is specifically engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for 1000BASE-T (1 Gigabit Ethernet) applications. The snagless RJ-45 male connectors feature molded boots to protect the clips from snapping, which is ideal for high-insertion cycle environments like server rooms or data centers. For improved signal integrity, the connectors are equipped with 50-micron gold-plated contacts. This CMR-rated cable is designed with a PVC jacket and is suitable for riser applications. With an operating temperature range of -4° - 167°F (-20° - 75°C), it provides consistent performance for network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435914 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G43591 TAA compliant?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency for increased performance.
What type of shielding does this cable use?
The C2G43591 is an unshielded (UTP) cable with a 0.22 in (5.6 mm) diameter and a CMR-rated PVC jacket.
Can this cable be used in riser applications?
Yes, this cable has a CMR jacket rating, which is designated for riser applications.
What is the wiring scheme for this network cable?
This cable uses the T568B wiring scheme with RJ-45 male connectors on both ends.
