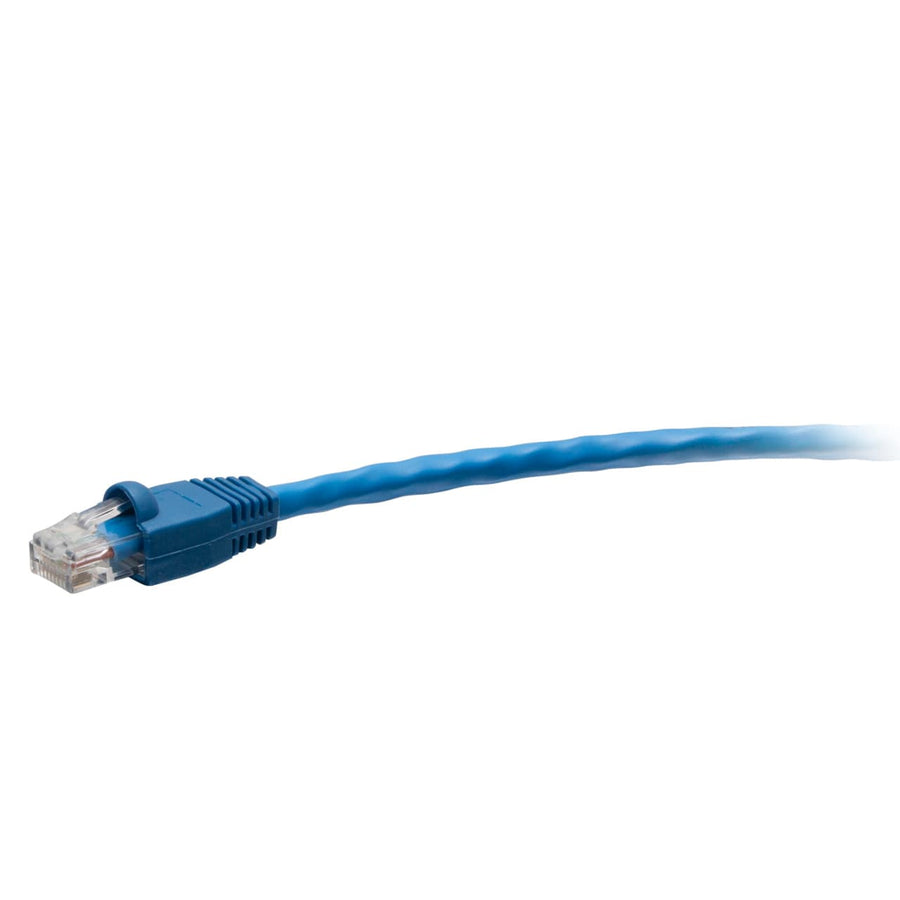

1ft (0.3m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Blue
1ft TAA-compliant Cat6 snagless Unshielded UTP network cable in Blue with 50-micron gold-plated contacts
The C2G43444 is a 1ft (0.3 m) TAA-compliant F-Series Cat6 network cable designed for high-performance connectivity in environments requiring strict compliance, such as United States government projects and facilities. This Unshielded UTP cable utilizes stranded copper conductors and 24 AWG wire to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It is suitable for high-speed applications, including 1000BASE-T (1 Gigabit Ethernet), providing an enhanced 600 MHz maximum frequency. The blue cable features a snagless RJ-45 male to RJ-45 male connector configuration with molded boots to provide extra strain relief and protect the clips from damage during high-frequency insertion cycles. Each connector is equipped with 50-micron gold-plated contacts to ensure signal integrity. The jacket is CMR rated and riser-rated, constructed from PVC material for reliable operation in a wide range of temperatures from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434443 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43444 TAA compliant?
Yes, this C2G43444 cable is TAA compliant, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed support for this Cat6 cable?
This cable supports up to 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
What type of shielding does the C2G43444 use?
The C2G43444 is an Unshielded UTP (Unshielded Twisted Pair) cable utilizing 24 AWG stranded copper conductors.
What are the temperature operating limits for this cable?
This network cable is designed to operate in temperatures ranging from -4° to 167°F (-20° to 75°C).
Can I use this cable in a riser application?
Yes, the C2G43444 features a PVC jacket that is both CMR rated and riser rated.
