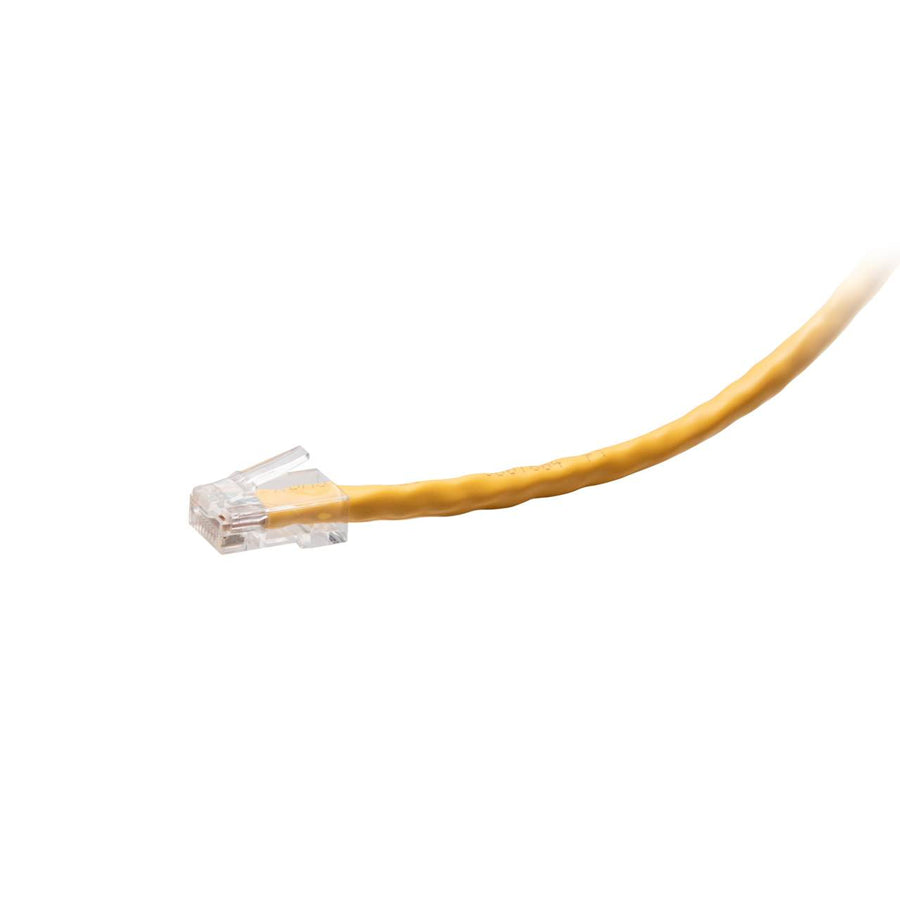

1ft (0.3m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Yellow
1ft Cat6 UTP unshielded network cable, TAA-compliant and yellow, designed for high-performance 1000BASE-T connectivity
The C2G43648 is a 1ft (0.3m) TAA-compliant F-Series Cat6 non-booted unshielded (UTP) network cable in yellow. Built to meet the rigorous requirements of United States government projects and facilities, this cable is specifically designed for use in sensitive environments where TAA compliance is mandatory. It utilizes high-quality, made in the USA raw copper cabling to ensure consistent and reliable performance for high-speed data transmission. This passive, unshielded patch cable features a T568B wiring scheme and is constructed with 24 AWG stranded copper conductors. To maintain signal integrity, the RJ-45 male connectors are equipped with 50-micron gold-plated contacts. The cable is CMR rated (Riser) with a PVC jacket, making it suitable for vertical applications within building riser shafts. This Cat6 cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications. The yellow color allows for easy identification in complex, color-coded network installations involving hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436485 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43648 TAA compliant for government projects?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) applications and utilizes enhanced 600 MHz maximum frequency performance.
Can this cable be used in a vertical riser installation?
Yes, the jacket is CMR rated (Riser), allowing for use in vertical applications within building riser shafts.
What are the connector types on this patch cable?
The C2G43648 features two RJ-45 male connectors with 50-micron gold-plated contacts.
Does this cable support different lengths or colors?
This SKU is a 1ft yellow cable, but the F-Series is available in multiple colors and lengths up to 25ft.
