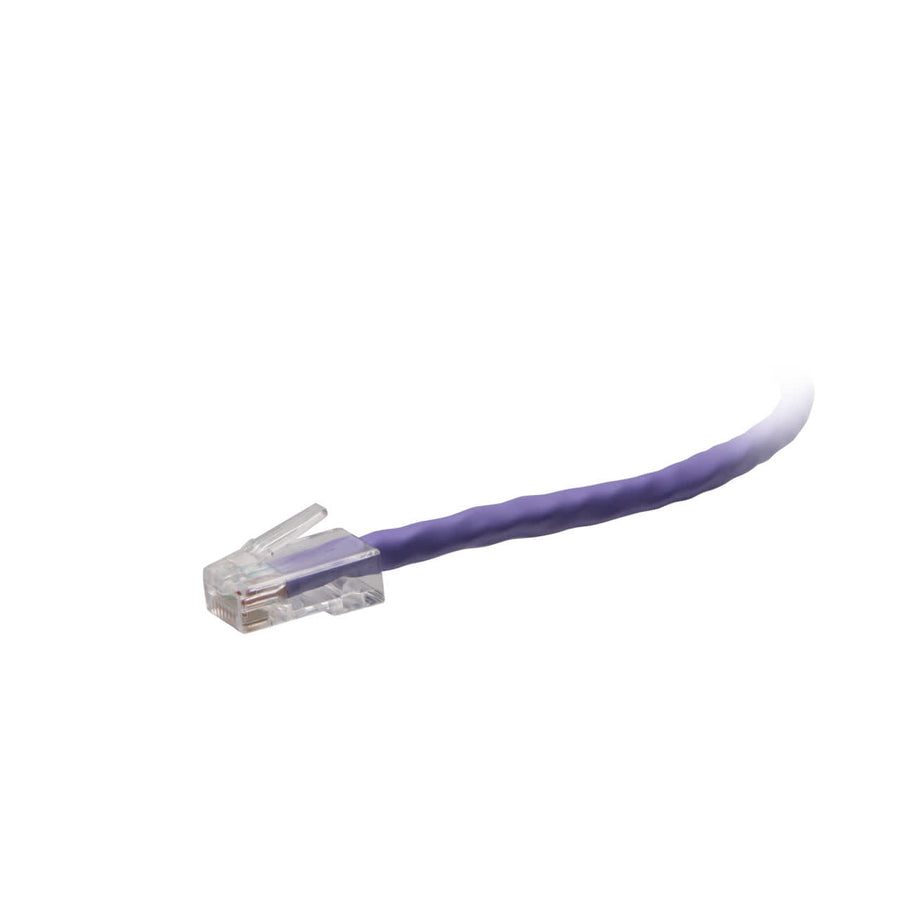

1ft (0.3m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Purple
Purple 1ft Cat6 unshielded patch cable, TAA-compliant with 50-micron gold-plated contacts and CMR riser rating
The C2G43672 is a 1ft (0.3m) TAA-compliant Cat6 unshielded (UTP) network cable finished in purple, designed specifically for use in United States government projects and facilities requiring TAA compliance. This passive cable features a non-booted design with standard RJ-45 male connectors on both ends and utilizes a T568B wiring scheme. Built with high-quality, made-in-the-USA stranded copper conductors, this cable supports 1000BASE-T (1 Gigabit Ethernet) applications and offers an enhanced 600 MHz maximum frequency for reliable performance. The 0.22 in (5.6 mm) diameter jacket is PVC and CMR rated for riser applications, ensuring it meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. For improved signal integrity, the connectors are equipped with 50-micron gold-plated contacts. This cable operates effectively within a temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436720 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
