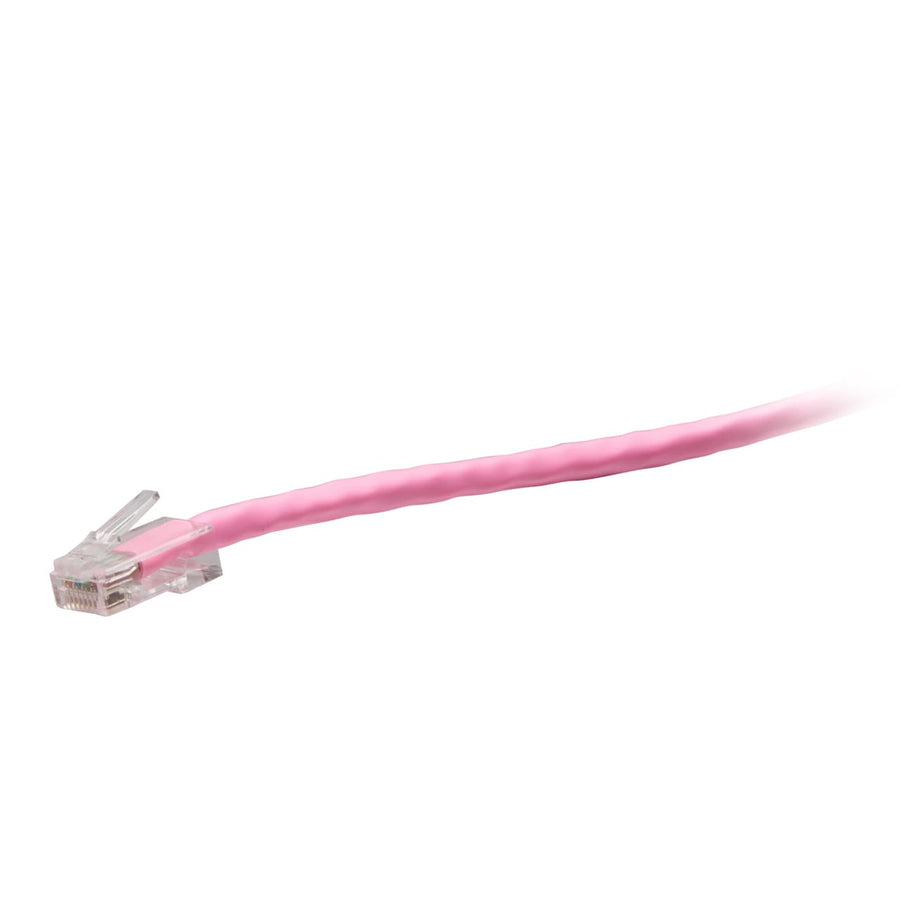

1ft (0.3m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Pink
1ft Pink Cat6 Unshielded (UTP) network cable, TAA-Compliant with RJ-45 male connectors
The C2G43696 is a 1ft (0.3m) TAA-Compliant F-Series Cat6 Unshielded (UTP) network cable finished in pink for easy color-coding. This passive cable is built with high-quality, made in the USA stranded copper conductors and features 50-micron gold-plated contacts to maintain signal integrity. It is designed for use in network adapters, hubs, switches, routers, and servers, supporting 1000BASE-T (1 Gigabit Ethernet) applications. This CMR rated riser cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, providing an enhanced 600 MHz maximum frequency. The jacket is made of PVC and is rated for riser applications. This pink cable is an ideal solution for short-run connections in government facilities and projects requiring TAA compliance. Because it is a non-booted design, it provides a slim profile for tight spaces where standard booted cables may be too bulky.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436966 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43696 TAA compliant?
Yes, this is a TAA-Compliant F-Series cable, approved for use in United States government projects and facilities.
What is the maximum frequency and speed support for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and provides an enhanced 600 MHz maximum frequency.
Can I use this cable in a riser installation?
Yes, the jacket is PVC and carries a CMR rating for riser applications.
What type of connectors are on the C2G43696?
This cable features standard RJ-45 male connectors on both ends and uses a non-booted, unshielded UTP design.
What is the wiring scheme for this pink network cable?
The C2G43696 is wired according to the T568B standard.
