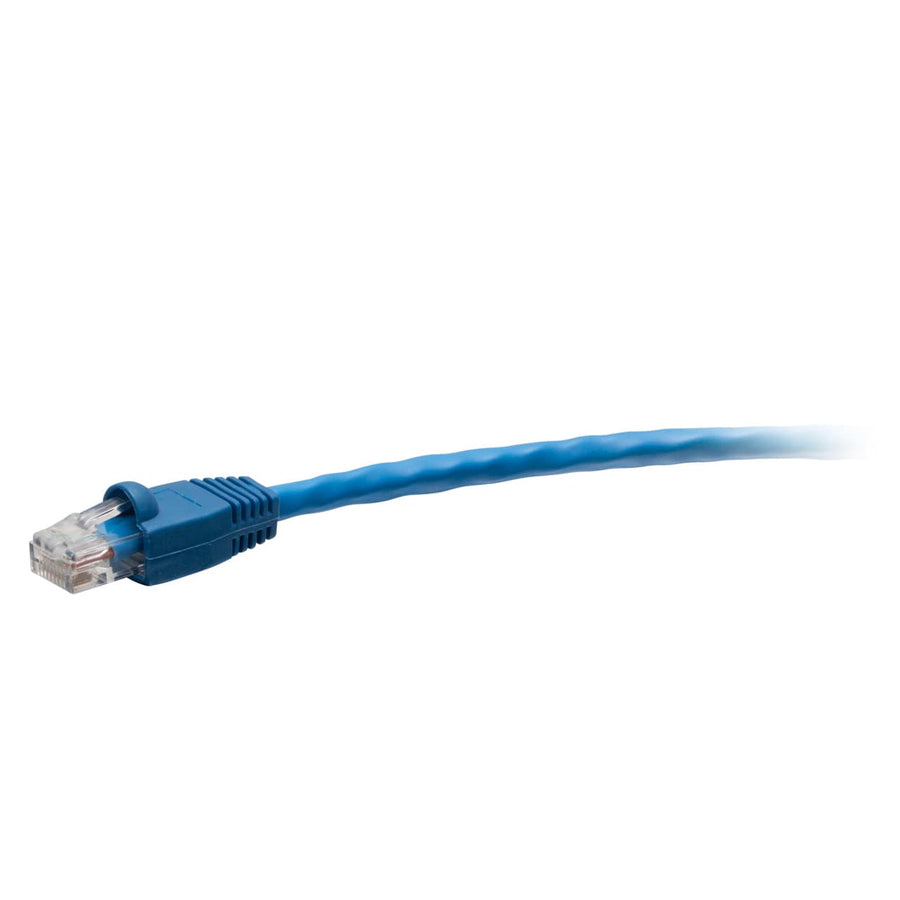

1ft (0.3m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
1ft Cat5e UTP network cable, TAA-compliant, snagless RJ-45 connectors, blue finish
The C2G43408 is a 1ft (0.3m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable in blue, built to meet strict requirements for United States government projects and facilities. This passive network cable is constructed with high-quality, made in the USA copper cabling, providing a maximum frequency of 350 MHz to ensure reliable performance that exceeds standard Cat5e specifications. Designed for use in high-density environments, the snagless RJ45 connector design includes a molded boot to protect the clips from being snapped off during installation or frequent insertion cycles. These connectors feature 50-micron gold-plated contacts to maintain signal integrity. This CMR rated riser cable uses stranded 24 AWG copper conductors and follows the T568B wiring scheme. It is suitable for connecting network adapters, hubs, switches, routers, and servers in 1000BASE-T 1 Gigabit Ethernet applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434085 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43408 TAA compliant?
Yes, this C2G43408 cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum frequency supported by this Cat5e cable?
This cable provides an enhanced 350 MHz maximum frequency, which exceeds the standard performance of typical Cat5e cables.
What is the jacket rating for this cable?
This cable features a CMR rated riser jacket made of PVC, making it suitable for riser applications.
Will the connector clips break easily during installation?
The snagless RJ45 design features a molded boot that protects the clips from being snapped off, which is ideal for applications with high insertion cycles.
What type of wiring scheme does this C2G43408 cable use?
This cable uses the T568B wiring scheme with 24 AWG stranded copper conductors.
