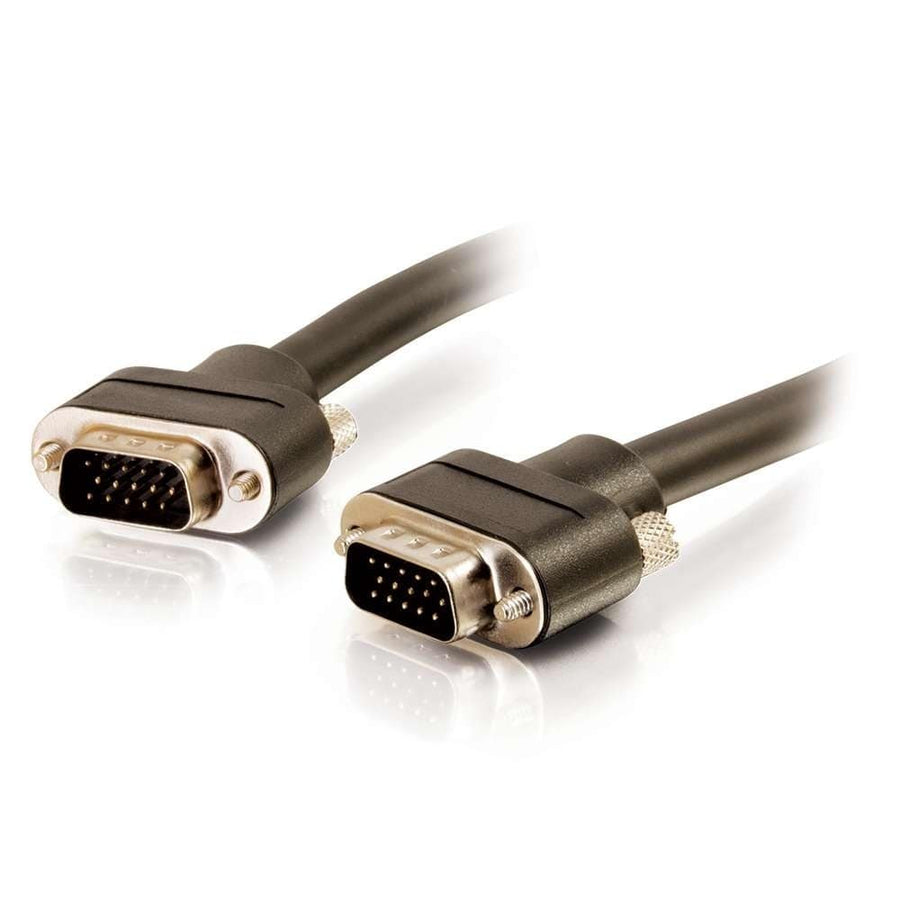

1ft (0.3m) Select VGA Video Cable M/M - In-Wall CMG-Rated
1ft in-wall rated VGA cable supporting resolutions up to QXGA (2048x1536) with CMG and FT4 ratings
The C2G CG50210 is a 1ft (0.3 m) Select VGA Video Cable designed for source to display connectivity in in-home desktop setups or in-wall commercial applications. This cable features a CMG-rated and FT4-rated PVC jacket, making it suitable for installation within walls. To ensure optimal signal integrity, all 15 pins are wired to support DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, which allow the source to communicate the display's specific capabilities for the best possible resolution. This cable supports video resolutions up to QXGA (2048x1536). The connectors are designed with a low profile and rounded shape, which facilitates installation in confined spaces like projector mount poles. This 8.5mm diameter cable is built to handle high-resolution video applications and maintains a 51mm bend radius during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 51mm |
| Cable Diameter | 8_5mm |
| Cable Length | 1 ft (0.3 m) |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Voltage | 30 V |
| Wire Gauge | 30 |
| Cable Type | VGA |
| Color | Black |
All other specifications 12
| Connector 1 | (1) VGA Male(1) VGA Male |
| Connector 2 | (1) VGA Male(1) VGA Male |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| UPC | 757120502104 |
| Video Input Support | VGA |
| Video Output Support | VGA |
| Video Resolution | QXGA (2048x1536) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Is the C2G CG50210 rated for in-wall installation?
Yes, this cable features a PVC jacket with CMG and FT4 ratings specifically for in-wall applications.
What maximum resolution does this VGA cable support?
The CG50210 supports video resolutions up to QXGA (2048x1536).
Will this cable work with EDID communication?
Yes, all 15 pins are wired to provide support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals.
Can I use this in a projector mount pole?
Yes, the connectors are designed with a low-profile, rounded shape to assist installation in tight spaces like projector mount poles.
What is the length of this VGA cable?
The CG50210 is a 1 ft (0.3 m) length cable.
