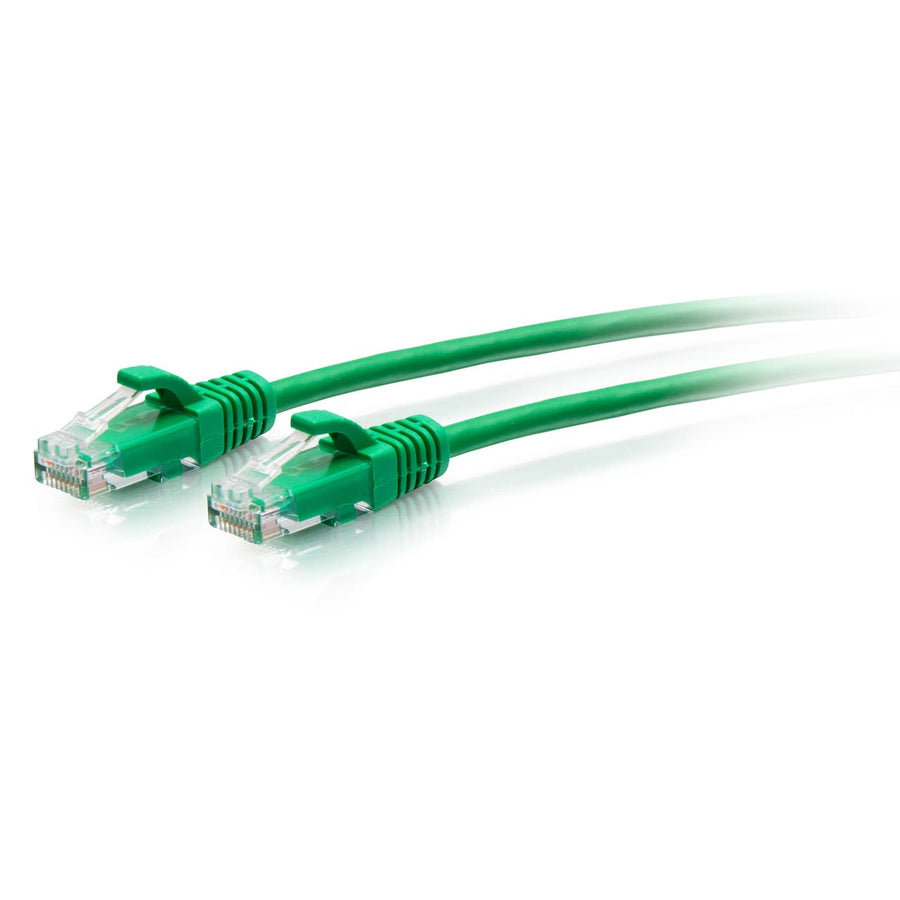

1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Green
1ft Green Cat6a slim UTP patch cable with 28AWG conductors and snagless boots for high-density environments
The C2G30153 is a 1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in Green, specifically designed for high-density cabling environments like datacenters and large conference rooms. Utilizing 28AWG stranded copper conductors, this slim cable features a 0.19 in (4.8 mm) diameter, which allows for significantly increased airflow and greater flexibility in tight spaces compared to standard Cat6 cables. This reduced footprint is particularly beneficial for Power over Ethernet (PoE) and VoIP applications. Each cable is equipped with RJ-45 male connectors featuring gold-plated contacts and a molded, snagless PVC boot to provide strain relief and prevent accidental disconnections during installation. The cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. This green patch cable is backed by a lifetime warranty and complies with RoHS, REACH, and TAA 889 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301530 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cable Management Strap - 12 Piece
TW12$25.20
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
Questions about this part
What is the maximum data rate for the C2G30153?
The C2G30153 supports data transfer rates up to 10 GBPS, meeting Cat6a performance requirements.
Is this cable suitable for high-density rack environments?
Yes, the 28AWG slim construction has a 0.19 in (4.8 mm) diameter, which increases airflow and provides more flexibility in tight spaces than standard Cat6.
What is the difference between this and the standard Cat6 cable?
This Cat6a slim cable offers double the minimum bandwidth of previous Cat6 cables and provides five times the power capacity of Cat5e.
Does this cable support PoE applications?
Yes, the Cat6a technology and 28AWG construction make it suitable for Power over Ethernet (PoE) and VoIP installations.
What documents are available for submittals?
You can access the Cat6a Slim Patch Cable Series Datasheet and the C2G Ethernet Patch Cable Matrix via the product resources.
