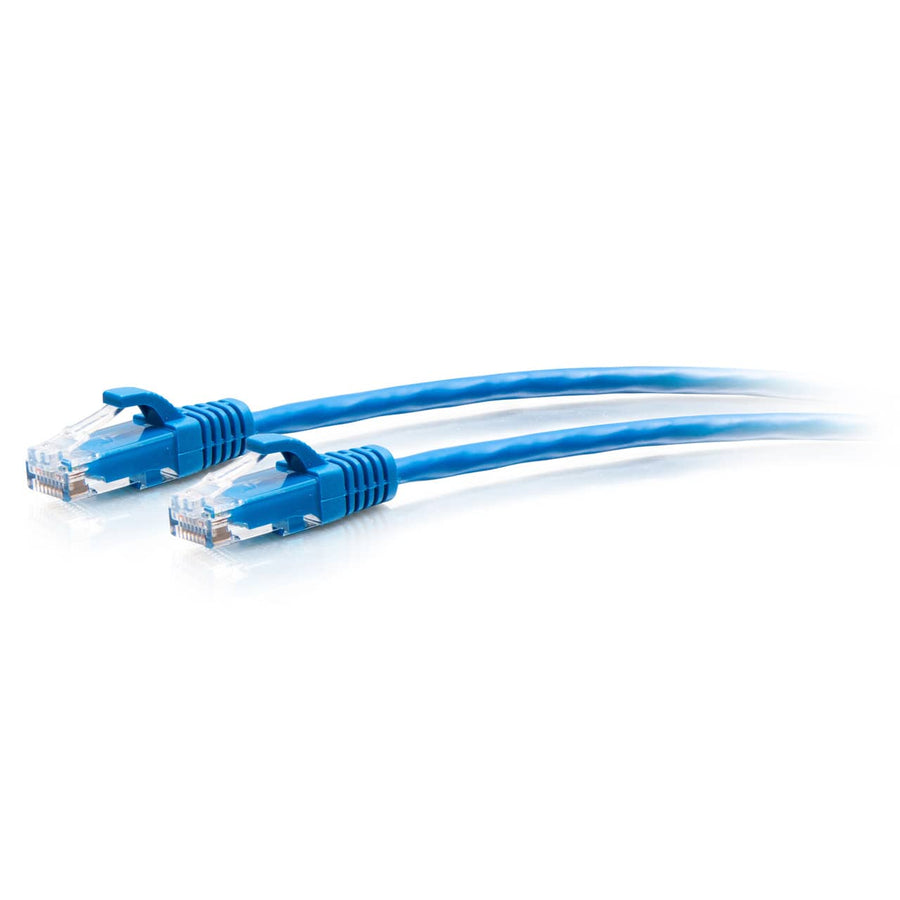

1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Blue
1ft Cat6a slim UTP patch cable in blue, featuring 28AWG stranded copper conductors and snagless boots for high-density environments
The C2G30125 is a 1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in blue, engineered specifically for high-density cabling environments like datacenters and large conference rooms. This slimline cable utilizes 28AWG stranded copper conductors, which significantly reduces the cable diameter to 0.19 in (4.8 mm). This smaller profile allows for increased airflow in crowded racks and provides the flexibility required for tight-space installations. Supporting data transfer rates up to 10 GBPS, it is an efficient choice for environments leveraging HDBaseT technology or requiring robust support for Power over Ethernet (PoE) and VoIP applications. Each cable features RJ-45 male connectors with gold-plated contacts and is protected by a PVC snagless boot that provides strain relief and prevents accidental snags during installation. This Cat6a performance meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301257 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
What is the difference between this and standard Cat6 cables?
Yes, the 28AWG construction and 0.19 in (4.8 mm) diameter make it ideal for high-density applications. This slim profile allows for greater flexibility in tight spaces and increases airflow compared to standard diameter cables.
Will this cable work for PoE or VoIP installations?
Yes, the Cat6a technology provides the necessary bandwidth and performance required for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) setups.
What is the maximum data transfer rate for the C2G30125?
This cable supports data transfer rates of up to 10 GBPS.
Does this cable include snagless protection?
Yes, the cable features a molded, snagless PVC boot that provides extra strain relief and helps prevent the cable from catching on other wires during installation.
Which documents are available for submittals?
You can reference the Cat6a Slim Patch Cable Series Datasheet for technical details or the C2G Ethernet Patch Cable Matrix for additional series information.
