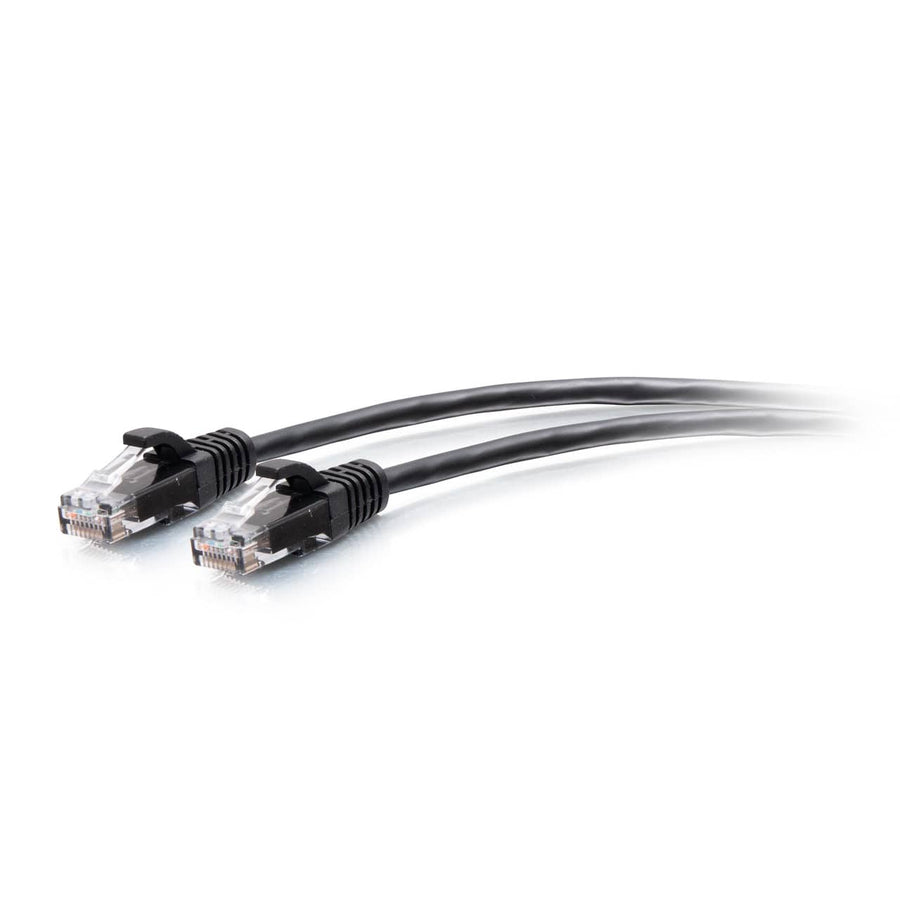

1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Black
1ft Cat6a slim UTP patch cable with 28AWG conductors and snagless boots for high-density network environments
The C2G30139 is a 1ft (0.3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling environments like datacenters or large conference rooms. This cable utilizes 28AWG stranded copper conductors, which significantly reduces the cable diameter to 0.19 in (4.8 mm) ± 0.15mm (about 0.01 in). This slim profile increases airflow in crowded rack spaces and provides greater flexibility for tight installations. It features RJ-45 male connectors with gold-plated contacts and snagless PVC boots that provide strain relief and prevent accidental disconnection during installation. The cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. This Cat6a solution is suitable for demanding applications, including Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) setups, where bandwidth and space are critical.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301394 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
What is the intended use for the C2G30139 cable?
The C2G30139 is designed for high-density cabling applications, such as datacenters or large conference rooms, where space and airflow are critical.
Will this Cat6a cable support PoE applications?
Yes, the Cat6a technology and 28AWG construction make this cable suitable for Power over Ethernet (PoE) and VoIP environments.
What are the electrical performance standards for this cable?
This cable meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
How does the slim diameter affect my installation?
The 0.19 in (4.8 mm) diameter and 28AWG construction allow for greater flexibility in tight spaces and increases airflow compared to standard Cat6 cables.
Does this cable include protection against snags during installation?
Yes, it features a molded, snagless PVC boot to prevent unwanted snags and provides additional strain relief for the connections.
