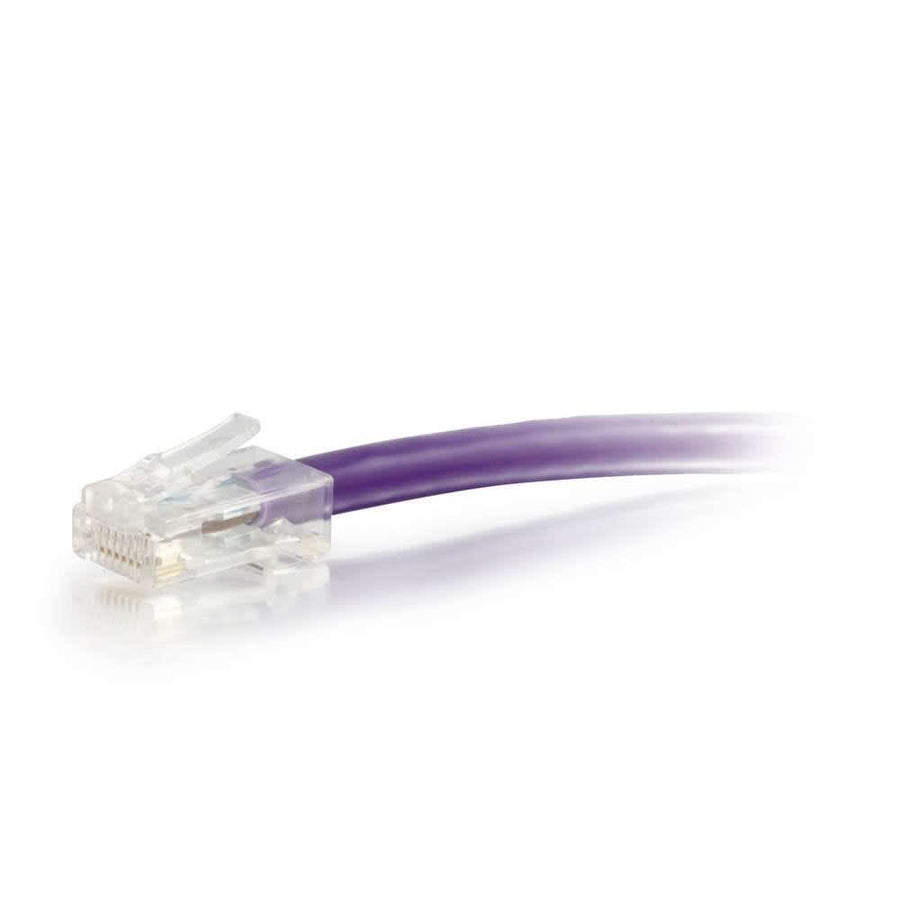

1ft (0.3m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Purple
Purple 1ft (0.3m) Cat6 UTP Ethernet patch cable with RJ-45 male connectors and T568B wiring
The C2G CG04211 is a 1ft (0.3m) Cat6 Unshielded UTP Ethernet patch cable in purple. This cable is designed for short-run connectivity in network environments, featuring stranded copper conductors with a 24 AWG wire gauge. It utilizes a T568B wiring scheme and is terminated with two RJ-45 male connectors. The non-booted connector type and 0.24 in (6 mm) cable diameter make it suitable for tight spaces where a smaller footprint is required. This cable features a PVC jacket with a temperature rating of up to 75°C. Electrical performance for this Cat6 cable includes a maximum DC resistance of 9.38#/100m, 100# impedance, and a capacitance of 5600pf/100m. Other technical specifications include a maximum propagation delay of 545ns/100m and a maximum delay skew of 45ns/100m. This product is TAA non-compliant but carries CE, REACH, and RoHS certifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042112 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring standard for the C2G CG04211?
This patch cable follows the T568B wiring scheme for standard network connectivity.
Does this Cat6 cable have shielding?
The CG04211 is an Unshielded UTP (UTP) cable, meaning it does not feature internal shielding.
Is the CG04211 TAA compliant?
No, this specific model is not TAA compliant.
What is the maximum temperature rating for the jacket?
The PVC jacket is rated for temperatures up to 75°C.
What type of connectors are used on this cable?
The cable is equipped with two RJ-45 male, non-booted connectors.
