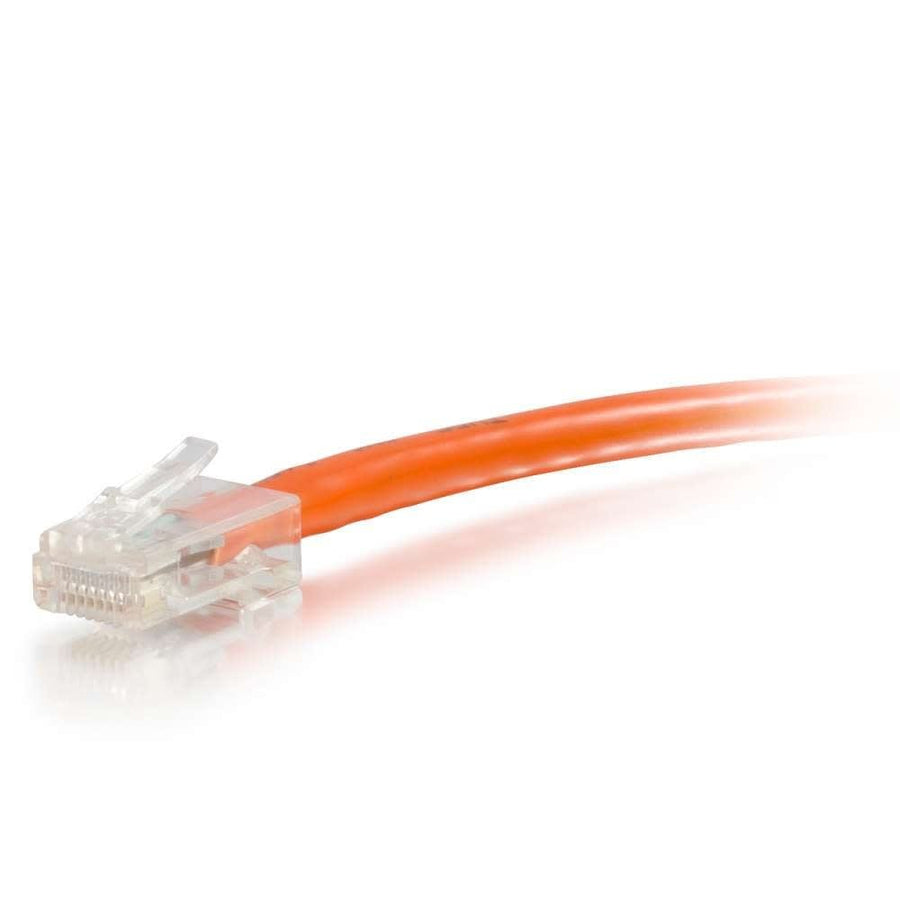

1ft (0.3m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Orange
1 ft (0.3 m) Cat6 unshielded UTP Ethernet patch cable, orange, with non-booted RJ-45 male connectors
The C2G CG04190 is a 1 ft (0.3 m) Cat6 unshielded UTP Ethernet network patch cable designed for short-range connections in high-density networking environments. This orange cable features stranded copper conductors and a 24 AWG wire gauge, ensuring reliable signal transmission for Cat6 performance applications. The cable uses a T568B wiring scheme and is constructed with a PVC jacket rated for standard, non-rated use. Both ends are equipped with RJ-45 male connectors in a non-booted configuration, making this an efficient choice for tight spaces where cable strain relief boots are not required. Technical performance for this Cat6 cable includes a maximum conductor DC resistance of 9.38# / 100m, a 100# impedance, and a capacitance of 5600pf/100m. Additionally, it maintains a maximum propagation delay of 545ns/100m and a maximum delay skew of 45ns/100m. This product is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041900 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the C2G CG04190?
This patch cable is wired using the T568B scheme.
Is this C2G patch cable TAA compliant?
No, the CG04190 is not TAA compliant.
What are the connector types on this orange Cat6 cable?
The cable features non-booted RJ-45 male connectors on both ends.
What is the maximum temperature rating for this cable?
This cable is rated for temperatures up to 75°C.
What is the conductor material used in the CG04190?
The cable uses stranded copper conductors and is unshielded (UTP).
