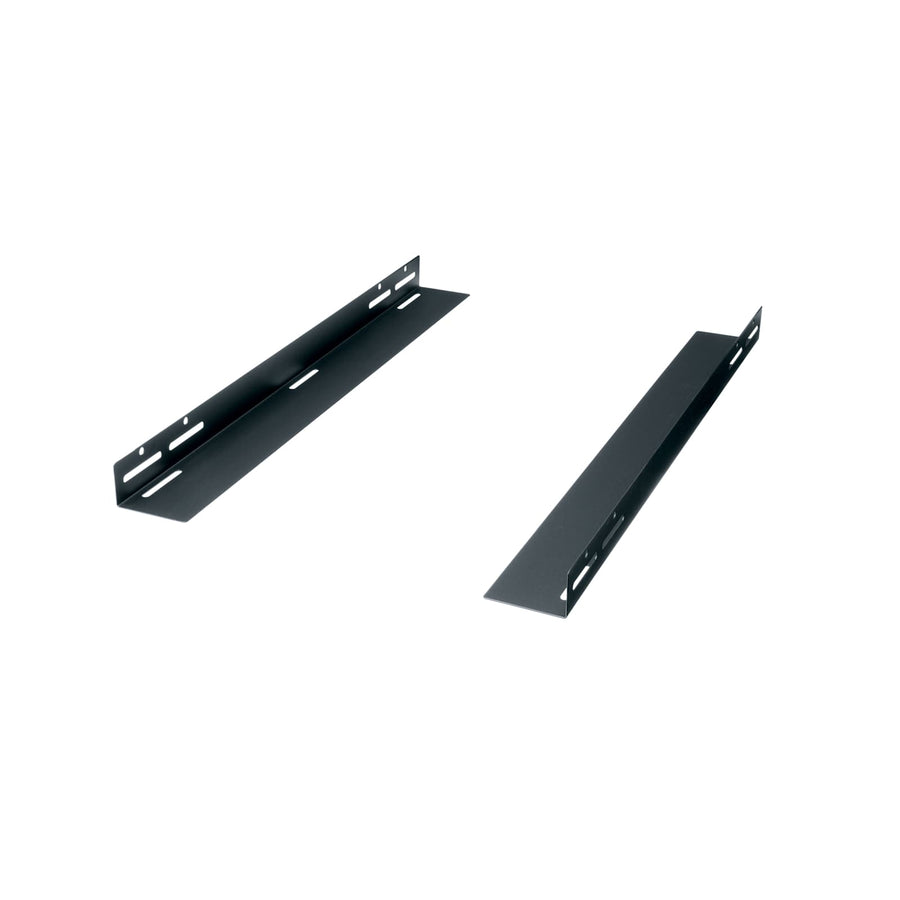

18 Inch Chassis Brackets
Chassis support brackets for heavy equipment, 100 lbs capacity, compatible with MRK, VRK, VMRK, and WMRK racks via Z-rail
The CSA-18 is an 18 in (45.7 cm) chassis support bracket designed to provide stable support for heavy equipment within a rack environment. These brackets facilitate essential ventilation for high heat-generating equipment by elevating or supporting the chassis away from the rack rails. Each unit features 4 mounting points and is designed specifically to be used with Z-rail or a Z-rail adapter. Note that these are not compatible with standard rackrail. These brackets are sold in pairs and are compatible only with MRK, VRK, VMRK, and WMRK racks. With a weight capacity of 100 lbs (45.4 kg), they offer an effective way to secure equipment without the need for rack screws. This SKU is part of a series that includes 20 in, 22 in, 24 in, and 26 in length options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 18 in (45.7 cm) |
| Height | 1.75 in (4.4 cm) |
| Package Count | 1 |
| Shipping Weight | 2.56 lbs (1.2 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 3 in (7.6 cm) |
| Color | Black |
| Mounting Points | 4 |
| UPC | 656747125416 |
Resources
Questions about this part
Will the CSA-18 work in a standard rackrail?
No, these brackets must be attached to a Z-rail or a Z-rail adapter and are not compatible with standard rackrail.
What rack types are compatible with the CSA-18?
The CSA-18 is compatible with MRK, VRK, VMRK, and WMRK racks when used with Z-rail or a Z-rail adapter.
How many brackets are included in a single order?
This product is sold in pairs, so you will receive two brackets per order.
How much weight can a pair of these brackets hold?
The weight capacity for these chassis support brackets is 100 lbs (45.4 kg).
Do I need to use rack screws to install these?
These brackets provide equipment support without the need for rack screws.
