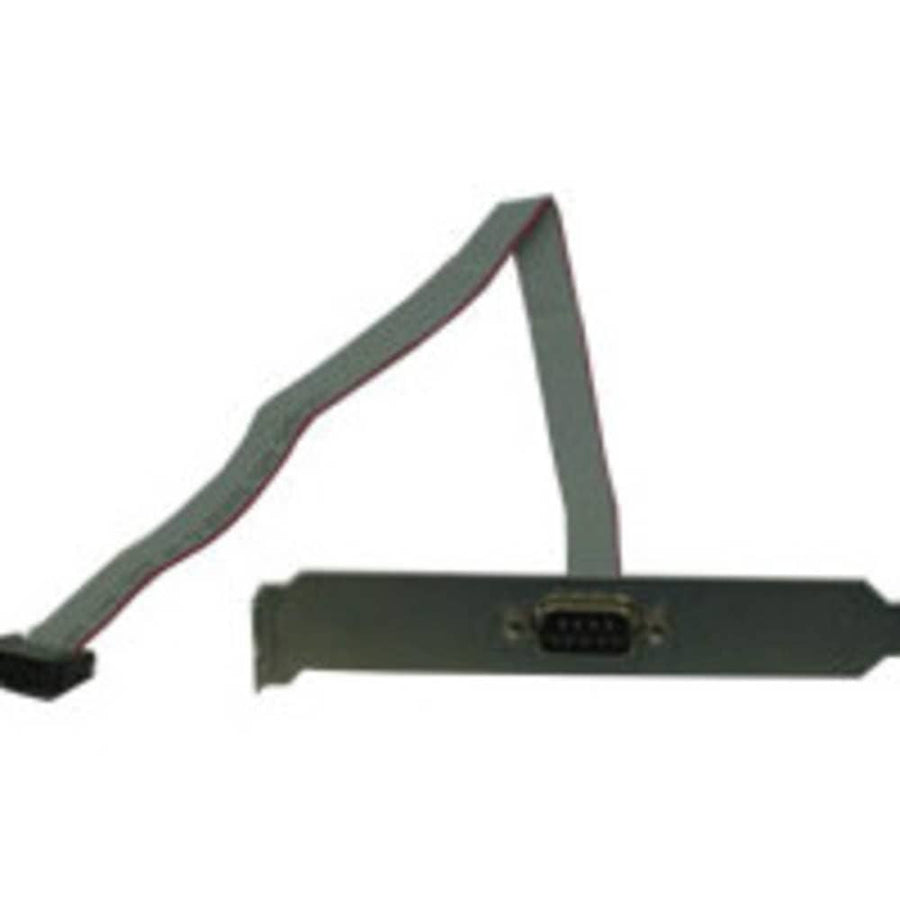

16in DB9M Serial RS232 Add-A-Port Adapter Cable with Bracket for Intel® Motherboards
RS232 adapter cable with mounting bracket that connects to Intel motherboards via 10-pin IDS (Dual Row) connectors
The CG27550 is a specialized DB9M Serial RS232 Add-A-Port adapter cable designed to expand connectivity for industrial or computing setups. This cable allows for smooth data flow from a DB9 male serial port by utilizing a flat ribbon cabling interface. It is specifically engineered to connect directly to an Intel® motherboard or an I/O adapter, and the included bracket enables a secure attachment to a port knockout on the computer case. The assembly features 1.34 ft (0.4 m) of cable length and utilizes 10-pin IDS (Dual Row) connectors to interface with the internal hardware. This product is compliant with NDAA 889, REACH, RoHS, TSCA, and Prop 65 standards, making it suitable for regulated environments.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Cable Length | 1.34 ft (0.4 m) |
| Shipping Weight | 0.09 lbs (0 kg) |
| Connector 1 | (1) DB9 Male(1) DB9 Male |
| Connector 2 | 10-pin IDS (Dual Row)10-pin IDS (Dual Row) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | AdapterCable |
| TAA Compliant | No |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
Questions about this part
How does the CG27550 connect to my computer motherboard?
It connects to the motherboard or an I/O adapter using a 10-pin IDS (Dual Row) interface and flat ribbon cabling.
Can I mount this adapter directly to the computer chassis?
Yes, the assembly includes a bracket that attaches the adapter to a port knockout on the computer case.
What is the interface type for the serial port?
This adapter uses a DB9 Male connector to provide an additional RS232 serial port.
What are the compliance certifications for this cable?
The CG27550 is compliant with NDAA 889, Prop 65, REACH, RoHS, and TSCA.
