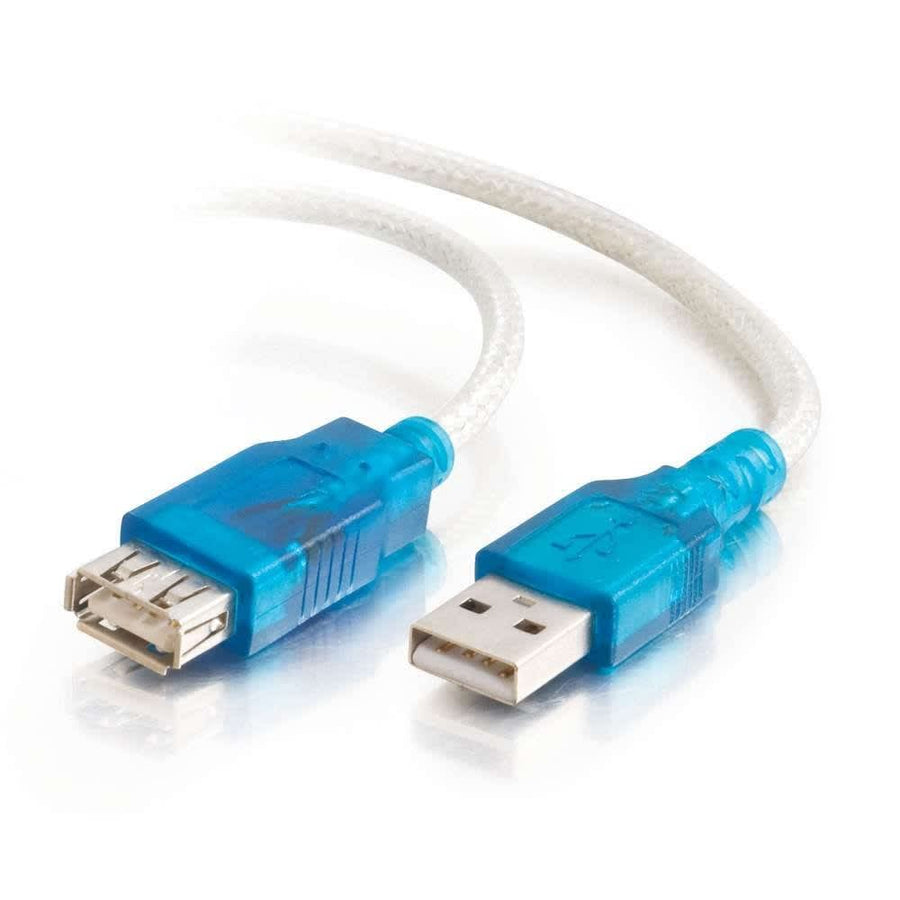

16.4ft (5m) USB 2.0 A Male to A Female Active Extension Cable
16.4 ft (5 m) USB 2.0 active extension cable supporting 480 MBPS bidirectional data transfer
The CG39978 is a 16.4 ft (5 m) USB 2.0 A Male to A Female active extension cable designed to overcome the distance limitations of standard USB connections. By utilizing an integrated active chip within the female connector, this cable actively buffers incoming and outgoing signals. This buffering ensures the connection remains compliant with USB 2.0 electrical and timing specifications, even at longer reaches. The signal transmission is bidirectional, allowing for reliable data transfer at rates of up to 480 MBPS. Because the active component is built into the connector, this cable is suitable for installation within conduit or raceway systems. For long-range deployments, you can connect up to three of these active extension cables end-to-end to achieve a total extension of up to 118 ft (36 m). This cable is compatible with both low-speed and high-speed USB devices and draws 100mA from the host computer's USB port.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.03 in (0.9 mm) |
| Cable Length | 16.4 ft (5 m) |
| Shipping Weight | 0.48 lbs (0.2 kg) |
| Signal Transmission | Bidirectional |
| Cable Type | Active Copper CableExtensionUSB |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-A Female(1) USB-A Female |
| Product Type | Active DeviceCable |
All other specifications 7
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120399780 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
Questions about this part
How long can I extend my USB connection using the CG39978?
You can reach a total extension of up to 118 ft (36 m) by connecting up to three of these active extension cables end-to-end.
Will this cable work with all USB 2.0 devices?
Yes, this active extension cable is designed to function with both high-speed and low-speed USB devices.
What is the maximum data transfer rate for this cable?
The CG39978 supports USB 2.0 technology with a data transfer rate of 480 MBPS.
Can I run this cable through a wall or conduit?
Yes, the active chip is built directly into the female connector, which facilitates installation inside a conduit or raceway.
How much power does the cable draw from my computer?
This active extension cable consumes 100mA from the USB port of the host computer.
