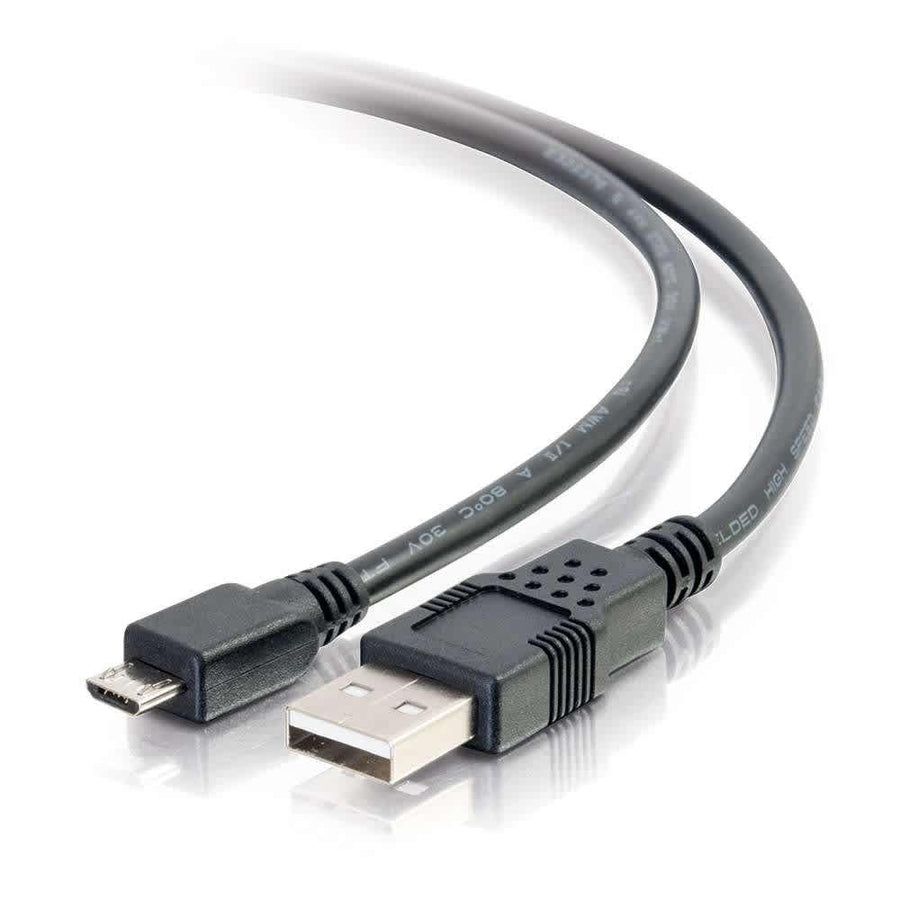

15ft (4.6m) USB 2.0 A to Micro-B Cable M/M - Black
15 ft (4.6 m) USB 2.0 A to Micro-B Male to Male cable, 480 Mbps data transfer, black PVC jacket
The C2G CG27395 is a 15 ft (4.6 m) USB 2.0 A to Micro-B Male to Male cable designed for reliable connectivity between a host computer and various peripherals. This cable supports bidirectional signal transmission, making it suitable for both data transfer and charging Android smartphones, tablets, and other mobile devices. It achieves data transfer rates of up to 480 Mbps, providing efficient file transfers and device synchronization. Constructed with a black PVC jacket, this cable features a 0.19 in (4.7 mm) diameter and a bend radius of 1.85 in (47 mm). It is built to operate in environments ranging from -4°F to 176°F (-20°C to 80°C) with non-condensing humidity levels between 20% and 80% RH. This 28 AWG cable is an ideal replacement or spare for professional AV setups and mobile device management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 100 mA |
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.37 lbs (0.2 kg) |
All other specifications 19
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB Micro-B Male(1) USB Micro-B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120273950 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the maximum data transfer speed for the CG27395?
The CG27395 supports data transfer rates of up to 480 MBPS via USB 2.0 technology.
What devices are compatible with this USB A to Micro-B cable?
This cable is used for connecting USB-A host devices to Micro-B peripherals, such as Android smartphones, tablets, and various PC peripherals.
What are the operating temperature limits for this cable?
The cable is rated for operation in temperatures ranging from -4°F (-20°C) to 176°F (80°C).
Does this cable support bidirectional data transfer?
Yes, the CG27395 supports bidirectional signal transmission for both data and power.
What is the bend radius for the CG27395 cable?
The minimum bend radius for this cable is 1.85 in (47 mm).
