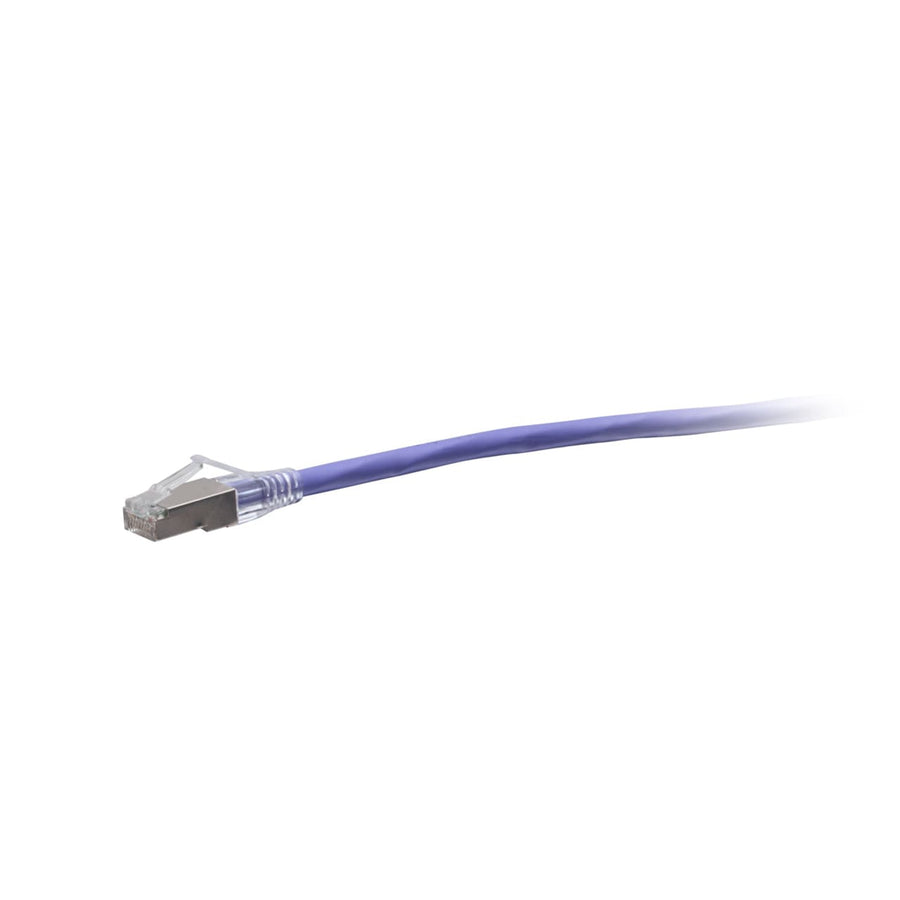

15ft (4.6m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Purple
15ft Cat6a shielded STP patch cable, TAA-compliant, snagless RJ-45 connectors, purple
The C2G43951 is a 15ft (4.6m) Cat6a STP patch cable designed to meet the stringent requirements of TAA-compliant projects and United States government facilities. This purple, snagless shielded cable is engineered for 10GBase-T ports and high-speed network equipment, including switches, routers, hubs, and network adapters. By utilizing an aluminum foil shield over stranded copper conductors, this cable protects high-speed 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. Built with a CMR-rated PVC riser jacket and 26 AWG wire, it adheres to ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. The snagless RJ-45 connector design protects the clips from damage during high-frequency insertion cycles. Each cable features 50-micron gold-plated contacts to ensure signal integrity and is rated for operating temperatures ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.46 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439516 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43951 TAA compliant for government contracts?
Yes, this cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum operating temperature for this Cat6a cable?
This cable is rated for operating temperatures between -4° to 167°F (-20° to 75°C).
Will this cable work for 10 Gigabit Ethernet applications?
Yes, this Cat6a cable is designed for 10GBase-T ports and can handle bandwidth-intensive applications.
What is the purpose of the snagless design on this cable?
The snagless RJ-45 connectors protect the clips from being snapped off, which is ideal for applications with high insertion cycles.
What type of shielding does the C2G43951 utilize?
It uses Shielded STP (Shielded Twisted Pair) with an aluminum foil shield to counter interference and alien crosstalk.
