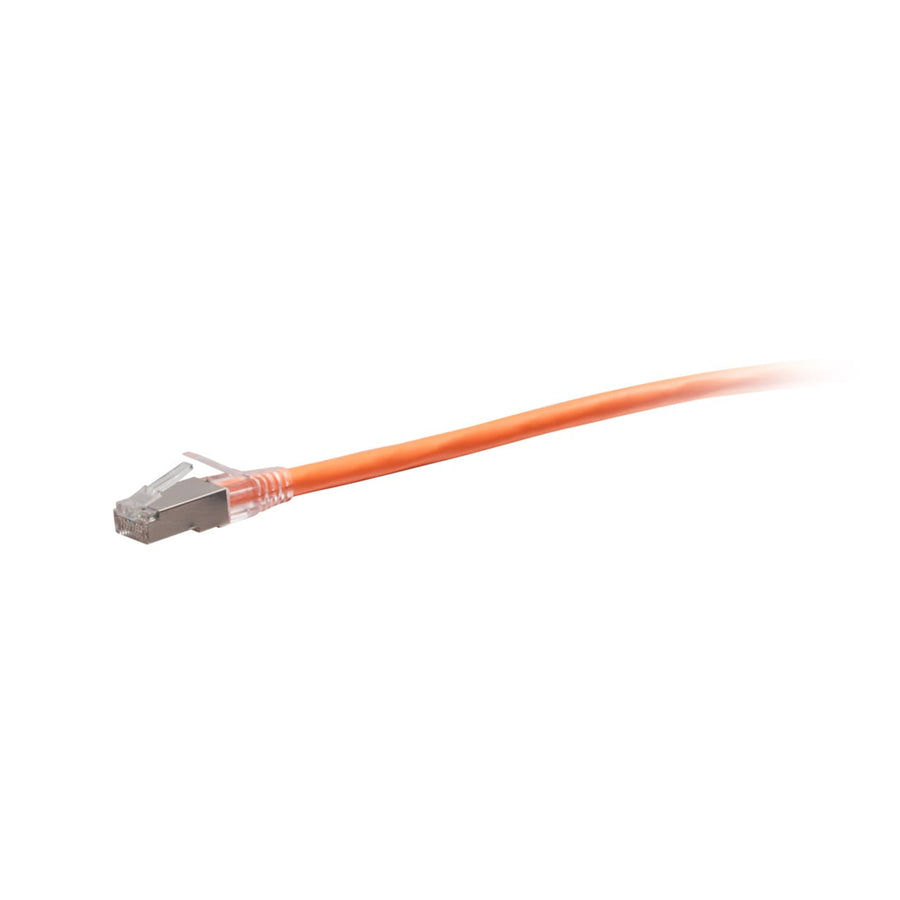

15ft (4.6m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Orange
15ft (4.6m) TAA-compliant Cat6a snagless shielded (STP) network cable in orange for 10GBase-T applications
The C2G43930 is a 15ft (4.6m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable designed for high-bandwidth environments. This orange, Riser Rated (CMR) cable is engineered to protect 10GBase-T network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk through its aluminum foil shielding and stranded copper conductors. It meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for demanding 10 Gigabit Ethernet applications including network adapters, switches, routers, and patch panels. The cable features a snagless RJ-45 design, which protects the clips from damage during frequent insertion cycles, and utilizes 50-micron gold-plated contacts to maintain signal integrity. This passive, TAA-compliant cable is constructed with high-quality, made in the USA raw cable and is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.46 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439301 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43930 TAA compliant?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum operating temperature for this cable?
This Cat6a cable is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Will this cable work for 10 Gigabit Ethernet applications?
Yes, this cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards for supporting 10GBASE-T 10 Gigabit Ethernet.
What shielding is used in this Cat6a cable?
This is a Shielded STP (Shielded Twisted Pair) cable that uses aluminum foil shielding to protect against EMI and RFI.
Can I use this cable for in-wall or riser applications?
This cable features a PVC jacket with a CMR (Riser) rating, making it suitable for riser applications.
