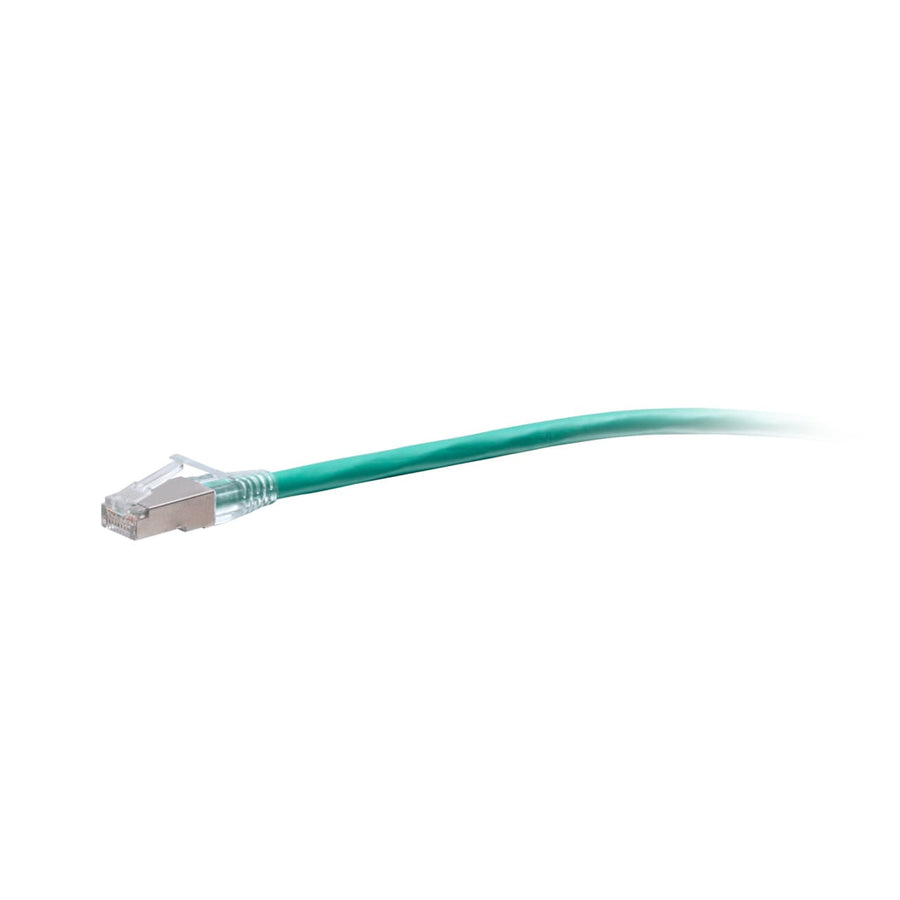

15ft (4.6m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Green
15ft TAA-compliant Cat6a STP patch cable, green, snagless RJ45 connectors, rated for 10GBase-T applications
The C2G43867 is a 15 ft (4.6 m) TAA-compliant Cat6a Snagless Shielded (STP) network cable finished in green. This passive cable is constructed with high-quality, made-in-the-USA copper stranded conductors and features an aluminum foil shield to protect high-speed 10 Gigabit network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It is designed for use with 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. This CMR-rated riser cable utilizes a PVC jacket and 26 AWG wire gauge. Each RJ45 male connector is equipped with 50-micron gold-plated contacts and a snagless design to protect the clips from damage during high-frequency insertion cycles. The wiring scheme follows the T568B standard and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. This green cable is suitable for environments requiring color-coded organization and TAA compliance for United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.46 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438670 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43867 TAA compliant for government contracts?
Yes, this cable is TAA compliant and is approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6a cable?
This cable supports 10GBASE-T (10 Gigabit Ethernet) applications and bandwidth-intensive voice, data, and video distribution.
How does the shielding on this cable work?
It uses a shielded STP design with an aluminum foil shield to counter EMI, RFI, and alien crosstalk in high-speed networks.
What is the jacket rating for this green network cable?
This is a CMR-rated riser cable, making it suitable for vertical installation within building riser shafts.
Does this cable include the necessary connectors?
Yes, this 15 ft cable is terminated with one RJ-45 male connector on each end following the T568B wiring scheme.
