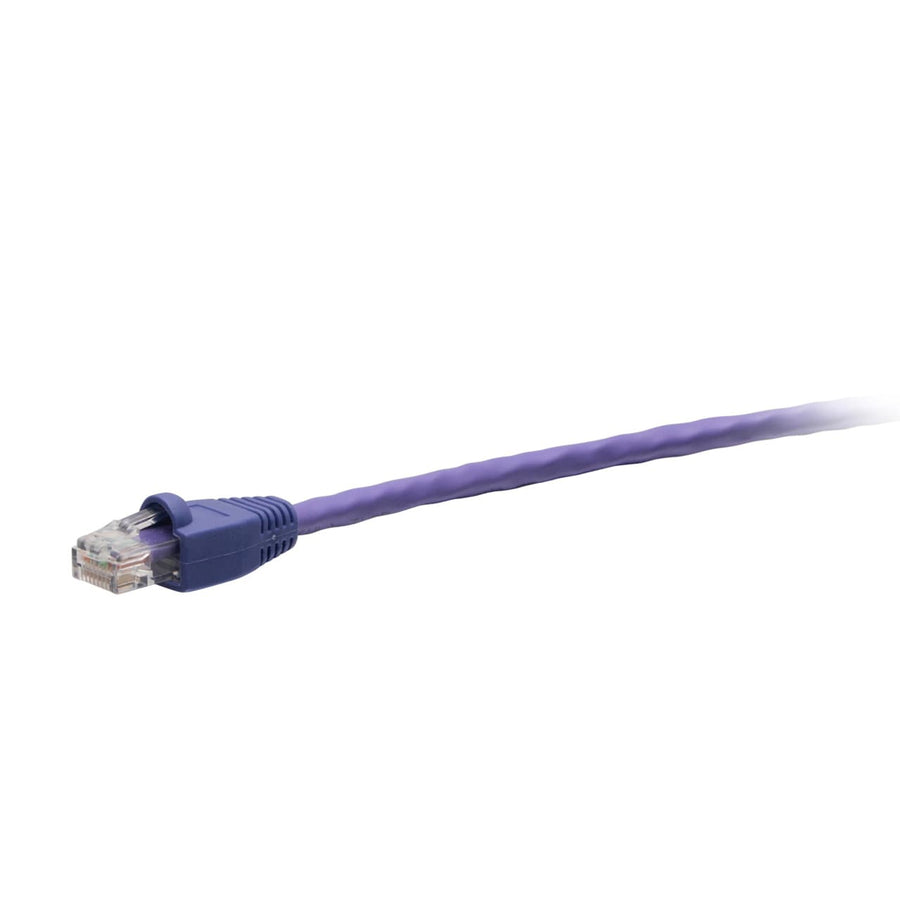

15ft (4.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Purple
15ft purple Cat6 snagless UTP network cable, TAA-compliant with 24 AWG stranded copper conductors
The C2G43561 is a 15ft (4.6m) TAA-compliant F-Series Cat6 snagless unshielded (UTP) network cable in purple. Designed for high-performance networking, this passive cable supports 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It is constructed with high-quality, made in the USA stranded copper cabling that provides an enhanced 600 MHz maximum frequency for improved performance over standard Cat6 options. Each RJ-45 male connector is equipped with 50-micron gold-plated contacts to ensure signal integrity and includes a molded, snagless boot to protect the clips from damage during installation or high insertion cycles. This CMR-rated riser cable features a PVC jacket and is approved for use in United States government projects and facilities requiring TAA compliance. It is suitable for connecting network adapters, hubs, switches, routers, and servers in environments with operating temperatures ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435617 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43561 TAA compliant?
Yes, this Cat6 cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum frequency of the C2G43561 cable?
The C2G43561 features an enhanced 600 MHz maximum frequency, providing higher performance than standard Cat6 cables.
What kind of construction does this Cat6 cable have?
This cable uses 24 AWG stranded copper conductors and an unshielded twisted pair (UTP) design with a PVC jacket.
What is the operating temperature range for this cable?
This cable is rated for operating temperatures between -4° to 167°F (-20° to 75°C).
Can I use this in a riser application?
Yes, this is a CMR-rated Riser cable, making it suitable for vertical shafts and riser applications.
