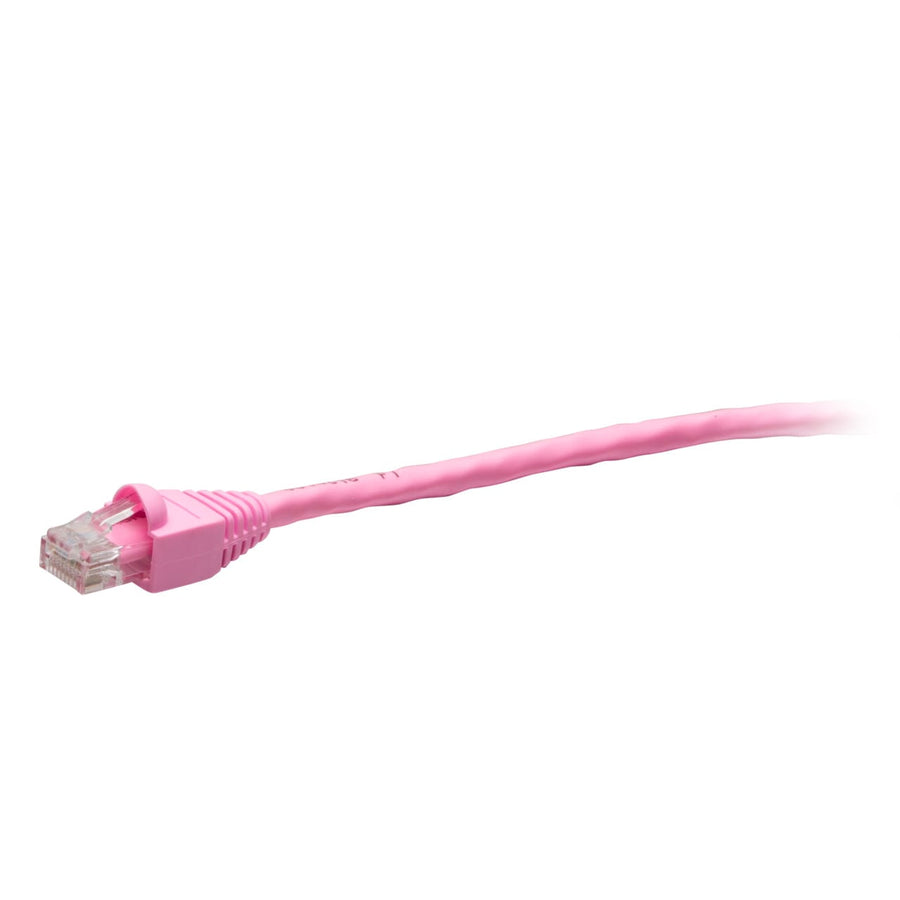

15ft (4.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
Pink TAA-Compliant Cat6 UTP network cable, 15ft length, with snagless RJ-45 connectors and CMR-rated riser jacket
The C2G43603 is a 15ft (4.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable in pink. This passive network cable is built with high-quality, made in the USA copper cabling, utilizing 24 AWG stranded copper conductors to provide an enhanced 600 MHz maximum frequency. It is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for 1000BASE-T (1 Gigabit Ethernet) applications including connections to servers, switches, routers, and hubs. This cable features a CMR-rated PVC jacket designed for riser applications and can operate in temperatures ranging from -4°F to 167°F (-20°C to 75°C). The molded snagless boots protect the RJ-45 clips from damage during high-frequency insertion cycles, and the 50-micron gold-plated contacts ensure signal integrity. Because it is TAA-compliant, this pink cable is approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436034 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43603 TAA compliant?
Yes, this is a TAA-Compliant F-Series cable, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed for this Cat6 cable?
This cable supports a 600 MHz maximum frequency and is designed for 1000BASE-T (1 Gigabit Ethernet) applications.
Can I use this pink Cat6 cable in a riser application?
Yes, this cable features a CMR-rated PVC jacket specifically for riser applications.
What type of connectors are on the C2G43603?
It is equipped with (1) RJ-45 Male to (1) RJ-45 Male connectors featuring a snagless boot to protect the clips.
What other products are compatible with this cable?
This cable is compatible with various enclosures and patch panels, such as the CG37200 48-Port Cat6 110-Type Patch Panel or the EN1400 14 Inch Enclosure.
