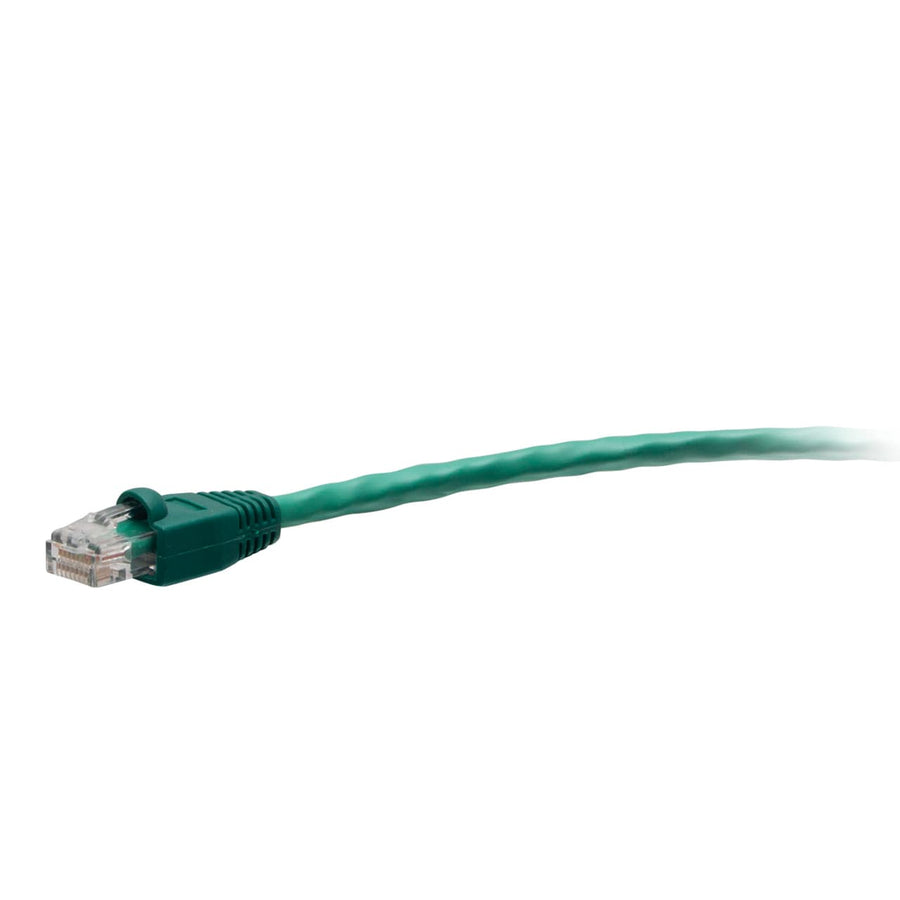

15ft (4.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Green
15ft (4.6m) Cat6 UTP network cable, TAA-compliant, snagless design, CMR rated, green
The C2G43498 is a 15 ft (4.6 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable in green. Engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, this cable supports 1000BASE-T (1 Gigabit Ethernet) applications. It features high-quality, made in the USA copper stranded conductors with a 24 AWG wire gauge, providing an enhanced 600 MHz maximum frequency for reliable performance. The design includes snagless RJ-45 male connectors with 50-micron gold-plated contacts to maintain signal integrity and a molded boot that protects the clips from damage during high-insertion cycle use. This CMR rated, riser-application cable features a PVC jacket and is approved for use in United States government projects and facilities that require TAA compliance. The green color facilitates easy identification and color-coding within complex network environments, including connections for hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434986 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43498 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in United States government projects and facilities.
What is the maximum frequency of this Cat6 cable?
This cable is designed with an enhanced 600 MHz maximum frequency for increased performance over standard Cat6 cables.
Will this cable work for a 1 Gigabit Ethernet setup?
Yes, this cable meets or exceeds ANSI/TIA-568.2-D standards for supporting applications including 1000BASE-T (1 Gigabit Ethernet).
What is the difference between this and other F-Series cables?
The F-Series C2G43498 is a 15 ft (4.6 m) green, UTP cable; other variants in this series offer different lengths up to 100ft and different colors.
Can I use this in a riser application?
Yes, this cable has a CMR rating and is designed for riser applications.
