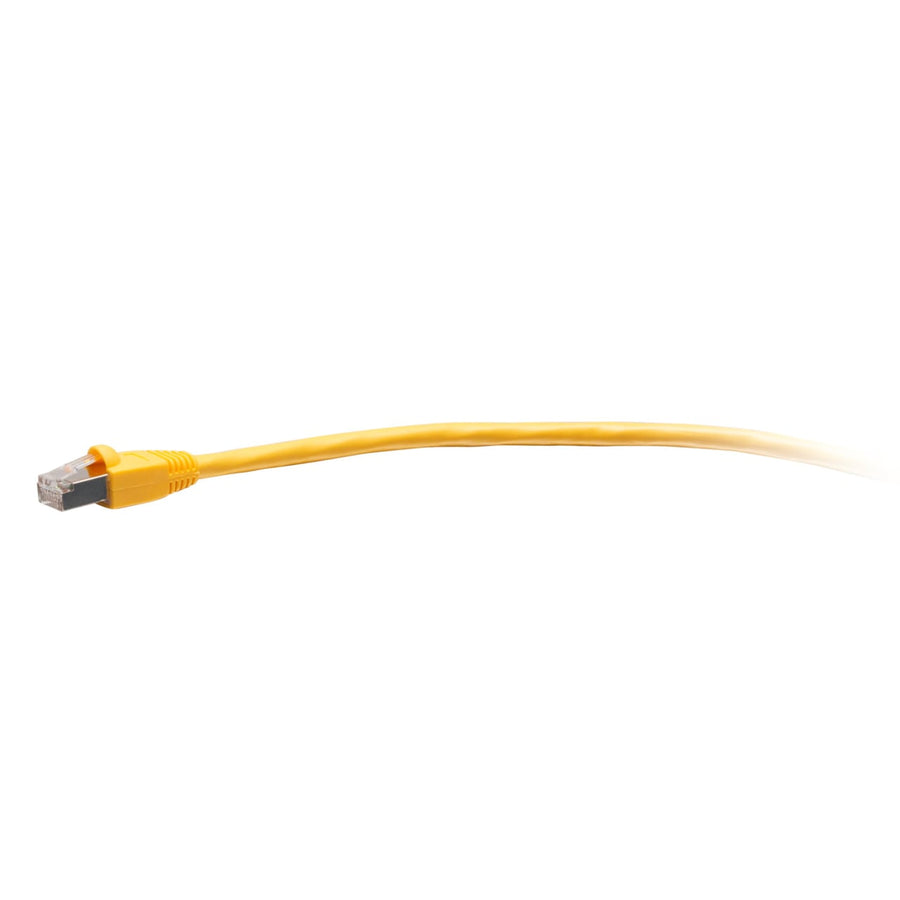

15ft (4.6m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Yellow
15ft TAA-compliant Cat6 snagless shielded STP cable in yellow, featuring 26 AWG stranded copper conductors for high-speed data environments
The C2G43774 is a 15ft (4.6m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable in yellow. This passive, shielded STP cable is engineered to protect high-speed networks from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It is built with high-quality, made-in-the-USA stranded copper conductors and features 50-micron gold-plated contacts to maintain signal integrity in demanding environments. Designed for high insertion cycles, the snagless RJ-45 connector design protects the clips from accidental breakage. This Cat6 cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, supporting applications up to 1000BASE-T (1 Gigabit Ethernet). The CMR-rated, riser-application PVC jacket is suitable for various installation needs, and the TAA compliance makes it approved for use in United States government projects and facilities. The cable operates within a temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437741 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43774 TAA compliant for government projects?
Yes, this is a TAA-Compliant F-Series cable, making it approved for use in United States government projects and facilities.
What is the maximum data rate supported by this Cat6 cable?
This cable meets ANSI/TIA-568.2-D standards and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
How does the shielding on this C2G cable protect my network?
The STP (Shielded Twisted Pair) construction uses an aluminum foil shield to protect the signal from EMI, RFI, and alien crosstalk.
What is the wiring scheme for the C2G43774?
This cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
What temperature range can this cable operate in?
The operating temperature for this cable is -4°F to 167°F (-20°C to 75°C).
