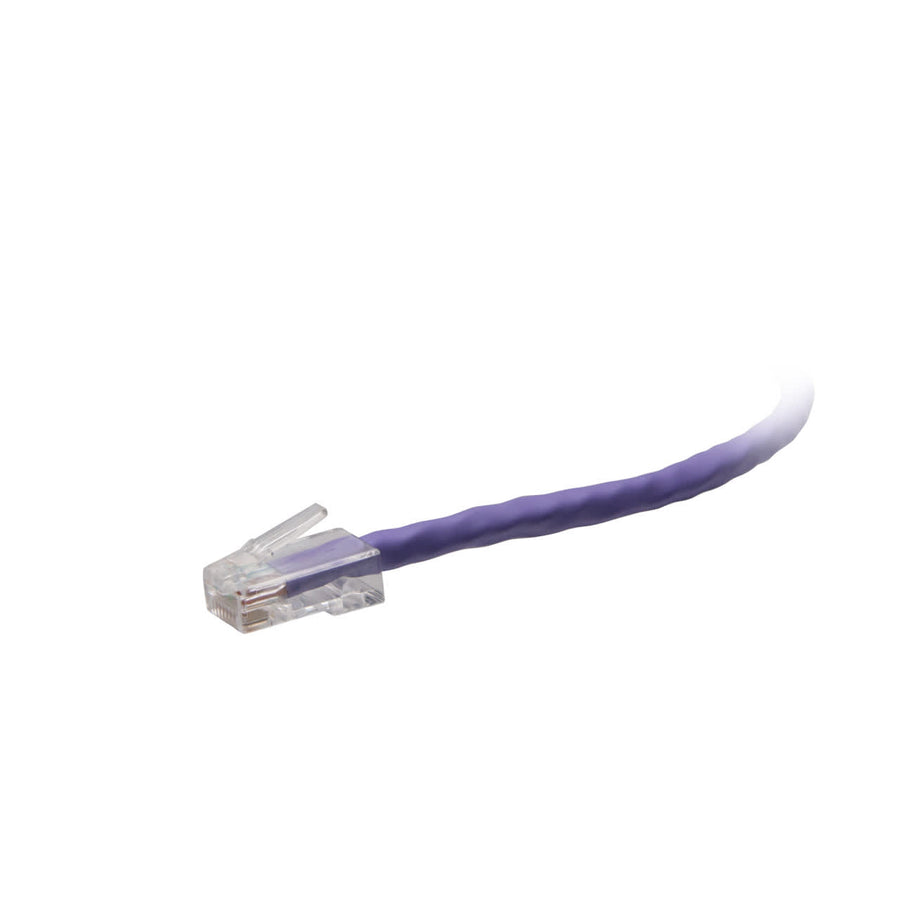

15ft (4.6m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Purple
15ft (4.6m) Purple Cat6 UTP network cable, TAA-compliant, non-booted with 24 AWG copper conductors
The C2G43681 is a 15 ft (4.6 m) TAA-compliant F-Series Cat6 non-booted unshielded (UTP) network cable in purple. This passive cable is engineered to meet TAA requirements, making it suitable for United States government projects and facilities. Built with high-quality, made in the USA raw copper, this cable provides a 600 MHz maximum frequency to ensure reliable performance for 1000BASE-T (1 Gigabit Ethernet) applications. Each cable features 50-micron gold-plated contacts on the RJ-45 male connectors to maintain signal integrity. The 24 AWG stranded copper conductors are housed in a PVC jacket with a CMR (Riser) rating, making it appropriate for installation in vertical shafts between floors. This cable follows the T568B wiring scheme and is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is designed for connections to network adapters, hubs, switches, routers, and servers, with an operating temperature range of -4°F to 167°F (-20°C to 75°C). The 0.22 in (5.6 mm) diameter allows for efficient color-coding in complex network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436812 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G43681 TAA compliant?
Yes, this cable is TAA-compliant and meets the requirements for use in United States government projects and facilities.
What is the maximum frequency for this Cat6 cable?
This cable provides an enhanced 600 MHz maximum frequency for increased performance in 1000BASE-T applications.
Can this cable be used in a riser application?
Yes, the cable features a CMR (Riser) rated PVC jacket, which is appropriate for use in vertical shafts between floors.
What is the wiring scheme for the C2G43681?
This 15 ft (4.6 m) network cable uses the T568B wiring scheme.
Does this cable use solid or stranded copper?
The C2G43681 is constructed with 24 AWG stranded copper conductors.
