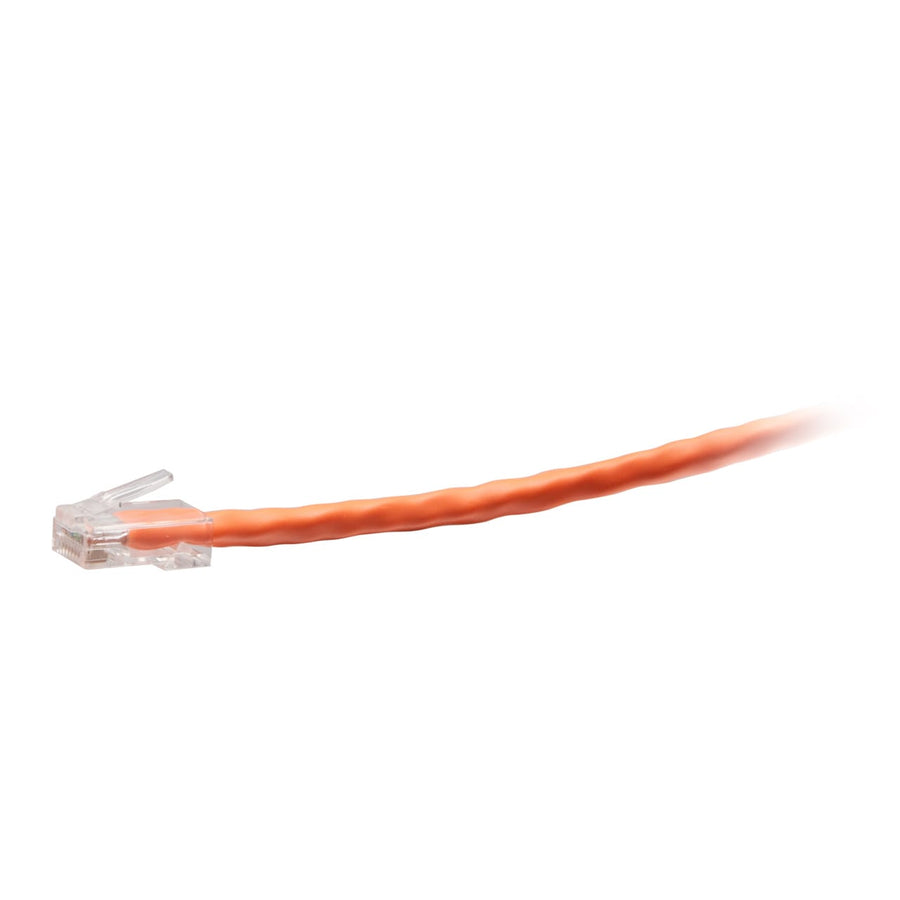

15ft (4.6m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Orange
15 ft (4.6 m) TAA-compliant Cat6 UTP network cable in orange, featuring CMR riser-rated jacket and stranded copper conductors
The C2G43669 is a 15 ft (4.6 m) TAA-compliant F-Series Cat6 unshielded (UTP) network cable designed to meet the stringent requirements of United States government projects and facilities. This orange, non-booted cable is engineered for high-performance connectivity between network adapters, hubs, switches, routers, and servers. It supports 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. For reliable signal integrity, each RJ-45 male connector is equipped with 50-micron gold-plated contacts. This cable features stranded copper conductors and a CMR-rated PVC jacket, making it suitable for riser applications. The cable has an operating temperature range of -4°F to 167°F (-20°C to 75°C) and a cable diameter of 0.22 in (5.6 mm). As part of the F-Series, it utilizes high-quality, made in the USA raw cable to ensure consistent network performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436690 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Will this C2G43669 cable work for government installations?
Yes, this cable is TAA-compliant and meets the necessary requirements for United States government projects and facilities.
Is this Cat6 cable suitable for riser applications?
Yes, the cable features a CMR-rated PVC jacket designed for riser-rated applications.
What is the maximum performance rating for this Cat6 cable?
The C2G43669 supports 1000BASE-T (1 Gigabit Ethernet) applications and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
What type of shielding does this network cable use?
This is an unshielded UTP (Unshielded Twisted Pair) cable with a 0.22 in (5.6 mm) diameter.
Which accessories are compatible with this F-Series cable?
This cable can be used in conjunction with various Legrand AV components such as the CG37199 24-Port Cat6 110-Type Patch Panel or the EN4250 42 Inch Enclosure.
