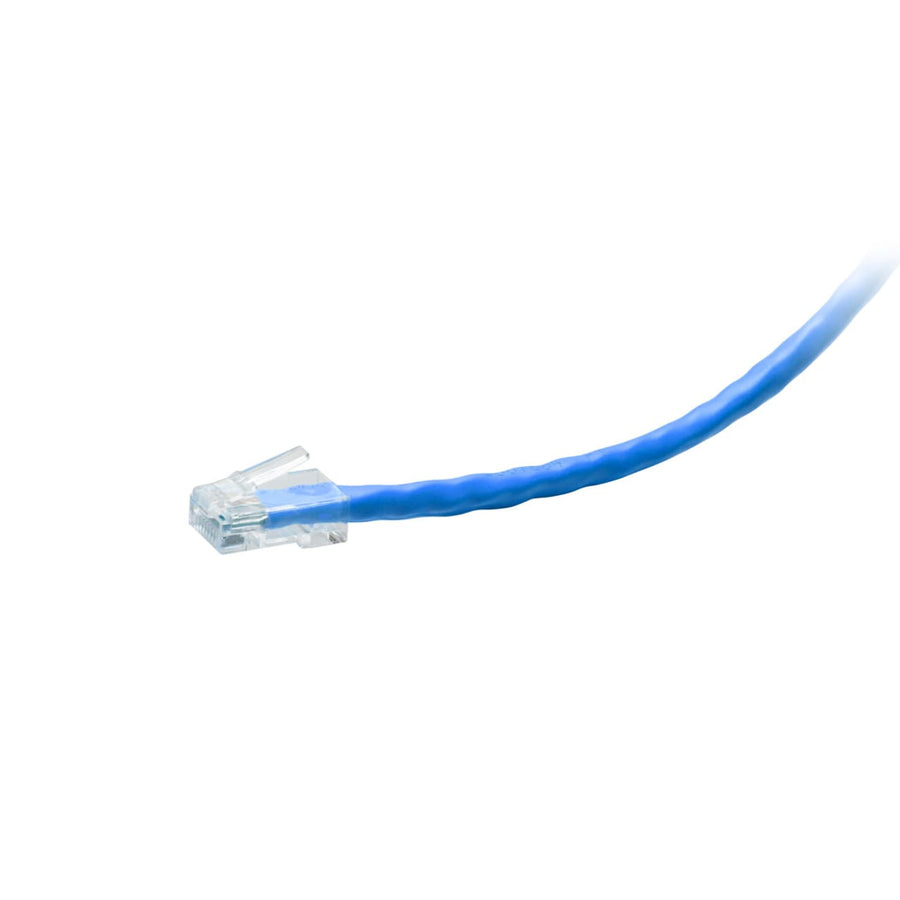

15ft (4.6m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Blue
15ft TAA-compliant Cat6 UTP network cable, blue, CMR rated, for 1000BASE-T applications
The C2G43621 is a 15 ft (4.6 m) TAA-compliant F-Series Cat6 network cable designed for use in United States government projects and facilities. This blue, unshielded twisted pair (UTP) cable is a passive solution that features RJ-45 male connectors on both ends and utilizes a T568B wiring scheme. It is constructed with stranded copper conductors and features 50-micron gold-plated contacts to maintain signal integrity. This CMR rated riser cable has a PVC jacket and a 0.22 in (5.6 mm) diameter. Capable of supporting 1000BASE-T (1 Gigabit Ethernet) applications, it meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The cable is designed to connect network adapters, hubs, switches, routers, and servers, providing a 600 MHz maximum frequency for reliable performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436218 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43621 TAA compliant for government contracts?
Yes, this F-Series Cat6 cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
The cable supports 1000BASE-T (1 Gigabit Ethernet) applications and is built with a 600 MHz maximum frequency.
Can I use this cable in a vertical riser application?
Yes, this cable features a CMR rated PVC jacket designed specifically for riser applications.
What type of RJ-45 connectors does this cable have?
The C2G43621 is a non-booted cable featuring one RJ-45 male connector on each end with a T568B wiring scheme.
What other accessories are compatible with this series?
This series is compatible with various mounting hardware including CG37199 24-port Cat6 patch panels and CG37094 stainless steel wall plates.
