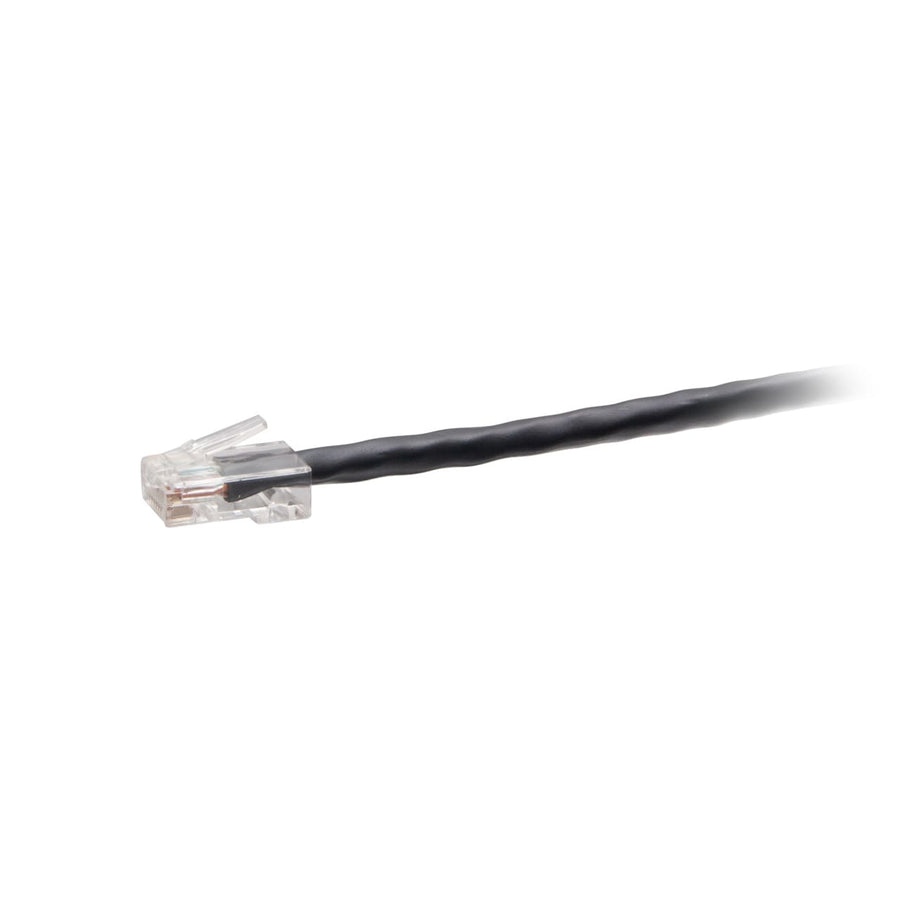

15ft (4.6m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Black
15ft TAA-compliant Cat6 UTP network cable, 24 AWG stranded copper, non-booted black finish
The C2G43633 is a 15 ft (4.6 m) TAA-compliant Cat6 non-booted unshielded (UTP) network cable designed for high-performance connectivity in government-regulated environments. Built with made-in-the-USA copper cabling, this passive cable supports 1000BASE-T 1 Gigabit Ethernet applications and offers an enhanced 600 MHz maximum frequency. This black, non-booted cable features 24 AWG stranded copper conductors and 50-micron gold-plated RJ-45 male contacts to ensure signal integrity across hubs, switches, routers, and servers. The CMR-rated PVC jacket is suitable for riser applications and is tested to ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. This cable is a reliable choice for network adapters and infrastructure requiring TAA compliance. The jacket material is PVC and the cable diameter is 0.22 in (5.6 mm). Operating temperatures range from -4° to 167°F (-20° to 75°C). This product is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436331 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43633 TAA compliant?
Yes, this cable meets TAA compliant requirements, making it approved for use in United States government projects and facilities.
What is the maximum frequency for this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, providing higher performance than standard Cat6 cables for 1000BASE-T applications.
What type of jacket rating does this cable have?
This cable features a CMR-rated PVC jacket suitable for riser applications.
Will this cable work with my network switch or router?
This passive UTP cable is designed to work with network adapters, hubs, switches, routers, and servers supporting 1000BASE-T.
What is the warranty for the C2G43633?
This network cable is covered by a lifetime warranty.
