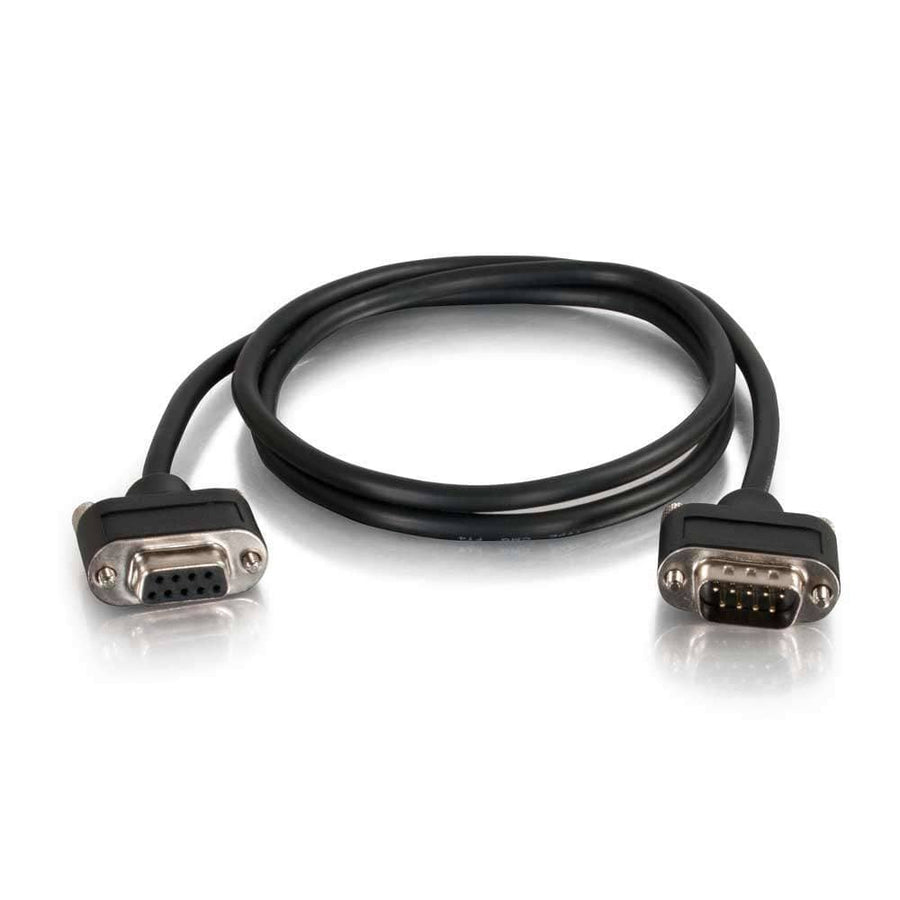

15ft (4.6m) Serial RS232 DB9 Null Modem Cable with Low Profile Connectors M/F - In-Wall CMG-Rated
15ft RS232 DB9 Null Modem Cable with low profile connectors, CMG and FT4 rated for in-wall installations
The CG52187 is a 15ft (4.6m) Serial RS232 DB9 Null Modem Cable designed specifically for the rigors of audio/video installations in commercial and educational environments. This cable features low profile DB9 connectors with a total depth of 1.25 in., allowing for easier installation within gang boxes. The rounded connector design is built to accommodate smaller mounts with a 1.25 in. inner diameter. This 28 AWG cable is CMG and FT4 rated for in-wall applications, making it a compliant choice for concealed cable runs. This Null Modem cable features a DB9 Male to DB9 Female configuration and is constructed to provide reliable signal integrity. The cable length of 15 ft (4.6 m) makes it a versatile solution for connecting serial devices across a room without the need for multiple individual patch cables.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 15 ft (4.6 m) |
| Shipping Weight | 0.46 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Type | ModemSerial |
| Color | Black |
| Connector 1 | (1) DB9 Male |
| Connector 2 | (1) DB9 Female |
| Jacket Application | In-Wall Rated |
All other specifications 7
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120521877 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the CG52187 suitable for in-wall installation?
Yes, this cable is CMG and FT4 rated, making it specifically engineered for in-wall applications in commercial and educational settings.
Will these connectors fit in a standard wall box?
The DB9 connectors feature a low profile design with a 1.25 in. total depth, which helps save space within a gang box.
What is the connector configuration for the CG52187?
This cable is a Null Modem cable with one DB9 Male connector and one DB9 Female connector.
How do these connectors work with small mounts?
The connectors feature a rounded shape designed to fit into mounts with a 1.25 in. inner diameter.
Does this cable support TAA compliance?
No, this specific model is not TAA compliant.
