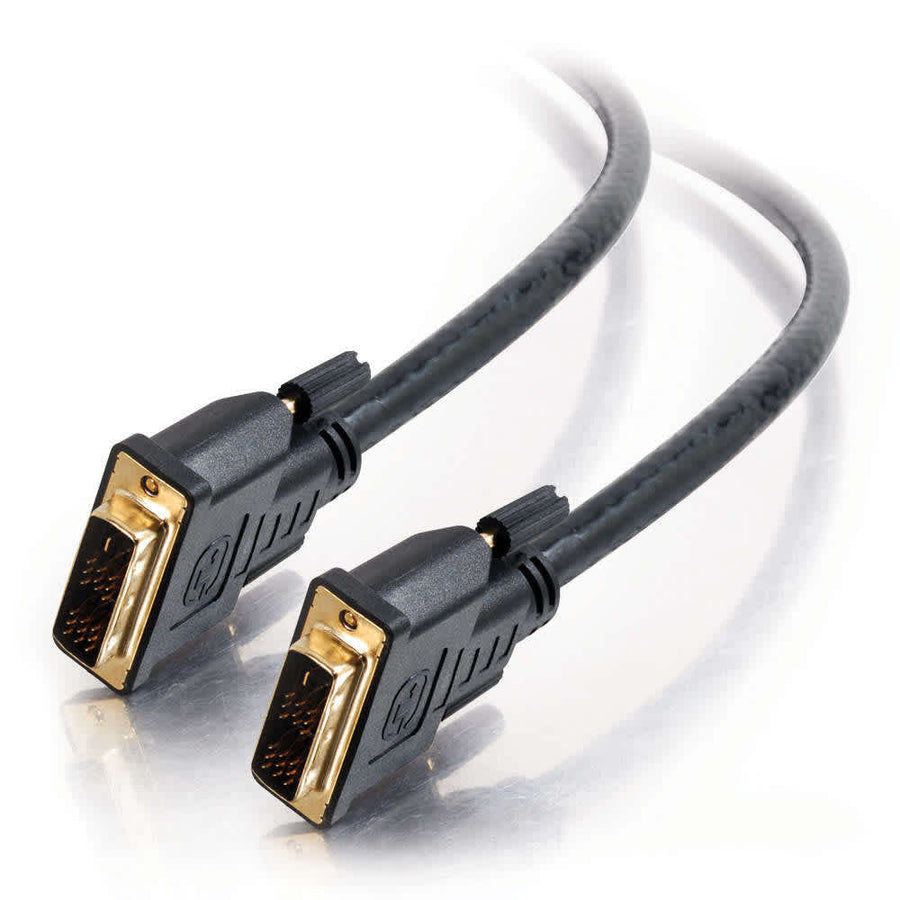

15ft (4.6m) Pro Series Single Link DVI-D™ Digital Video Cable M/M - Plenum CMP-Rated
15ft DVI-D single link digital video cable, CMP-rated for plenum use, supporting up to 1920x1200 resolution
The C2G CG41200 is a 15 ft (4.6 m) Pro Series Single Link DVI-D™ Digital Video Cable designed to meet strict building code requirements for commercial environments. This CMP-rated cable is intended for routing through plenum spaces above dropped ceilings or under raised floors in locations like schools and hospitals. Featuring FT6 rating compliance, this cable provides true digital performance for professional A/V installations. The 24 AWG copper conductors are shielded to protect against EMI and RFI, ensuring uninterrupted signal transfer for high-quality picture and sound. For long-term reliability, the connectors are gold-plated to prevent corrosion. This cable supports digital video resolutions up to 1920x1200 (WUXGA) and is strictly for digital video signals; it does not support analog video. This SKU is available in 15 ft, 25 ft, and 35 ft lengths.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 8_35mm |
| Cable Length | 15 ft (4.6 m) |
| Shipping Weight | 1.69 lbs (0.8 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Shielded |
| Cable Type | DVI |
| Color | Black |
| Connector 1 | (1) DVI-D Single Link Male |
All other specifications 11
| Connector 2 | (1) DVI-D Single Link Male |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| UPC | 757120412007 |
| Video Input Support | DVI-D |
| Video Output Support | DVI-D |
| Video Resolution | WUXGA (1920x1200) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this CG41200 cable work for analog video signals?
No, this cable is designed specifically for digital video signals and does not support analog video.
Is this cable suitable for installation in plenum spaces?
Yes, the CG41200 is CMP-rated and FT6 rated, making it suitable for routing through plenum spaces in commercial buildings.
What is the maximum resolution supported by this DVI-D cable?
The cable supports digital video resolutions up to 1920x1200 (WUXGA).
What is the difference between the 15ft and the 25ft versions?
The primary difference is the cable length; this SKU (CG41200) is 15 ft (4.6 m) long, while the other variant in this series is 25 ft.
Which compliance certifications does this cable carry?
This cable is listed with NDAA 889, RoHS, REACH, TSCA, and Prop 65 certifications.
