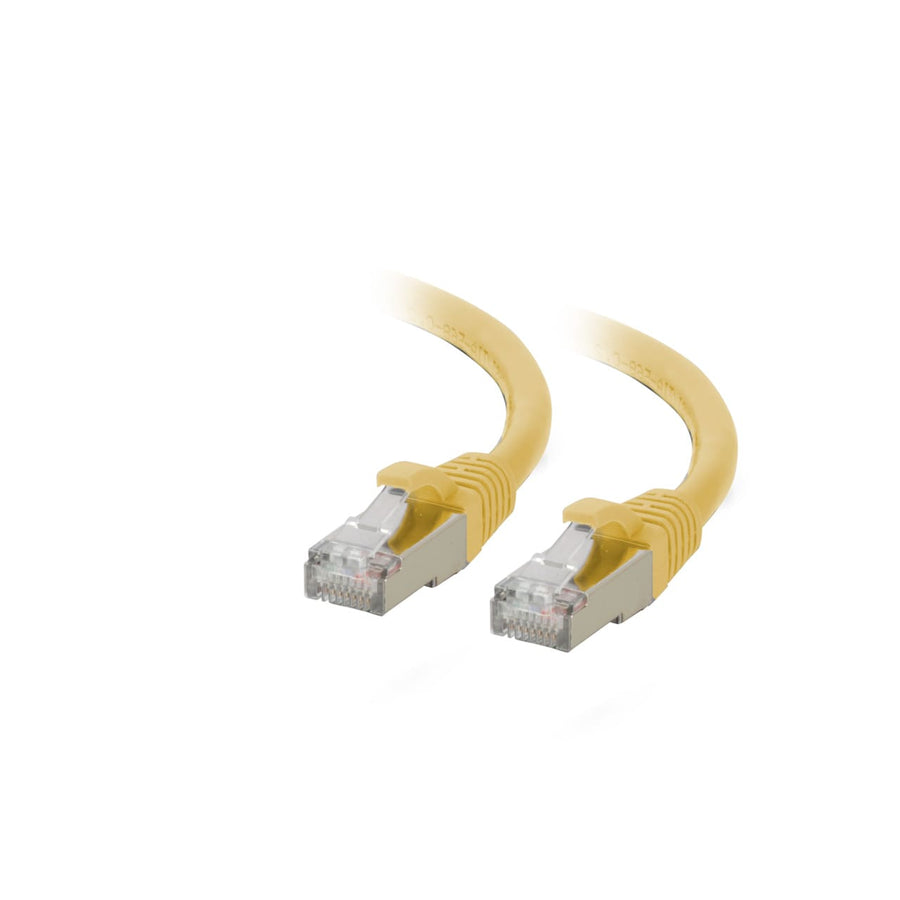

15ft (4.6m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Yellow
15ft Cat6A shielded STP patch cable, yellow snagless design, supports 10Gbps data transfer for high-speed networking
The C2G07379 is a 15ft (4.6m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable in yellow, engineered to support bandwidth-intensive 10Gbps applications. This shielded twisted pair (STP) cable is designed to protect high-speed networks from electromagnetic interference (EMI) and noise, making it suitable for use with network adapters, hubs, switches, routers, and DSL/cable modems. It meets the ANSI/TIA-568-C.2 Cat6a component requirements, ensuring reliable performance for voice, data, and video distribution. The construction features copper stranded conductors with FMPE (Foam Polyethylene) insulation to help maintain twist-spacing throughout the line, which reduces impedance and structural return loss (SRL). Each connector is an RJ-45 male with 50 µ in gold plating to ensure high-quality connections. The snagless design protects the RJ-45 connector's lock in high-density environments, and the yellow color allows for easy identification in complex network installations. This cable is rated for operating temperatures ranging from -4°F (-20°C) to 176°F (80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073796 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
