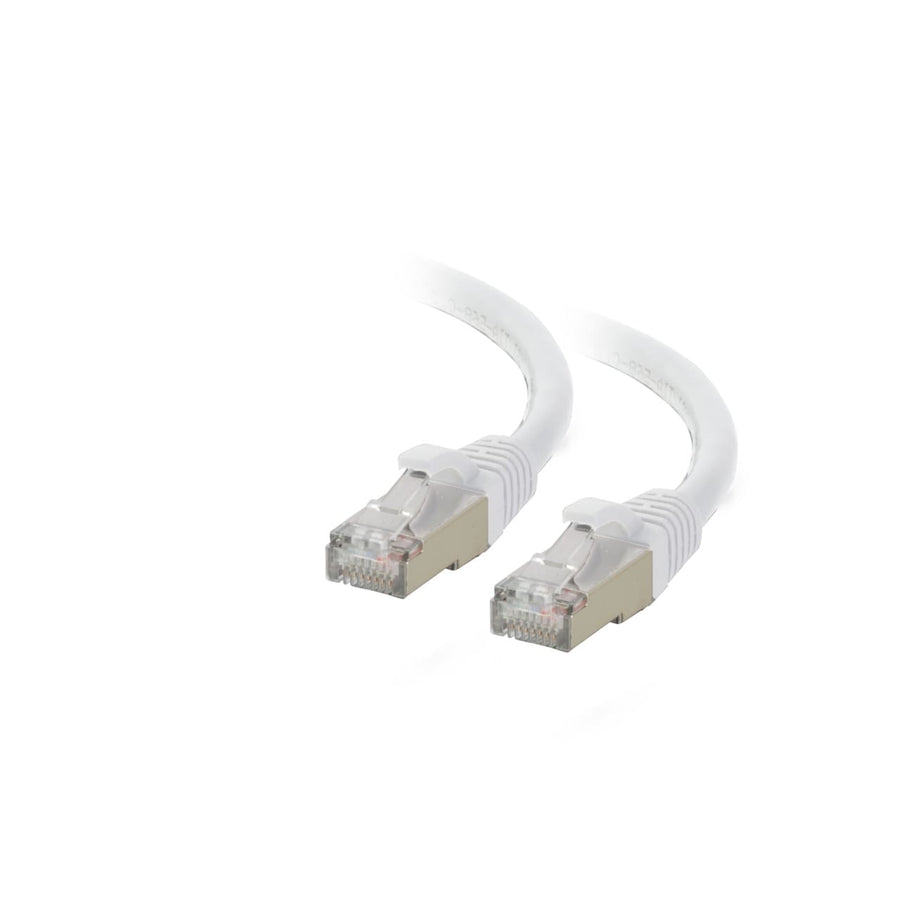

15ft (4.6m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - White
Shielded Cat6A patch cable for 10Gbps networking, 15ft length, snagless RJ-45 connectors, white finish
The C2G07388 is a 15ft (4.6m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable in white, engineered to support high-speed 10 Gbps data transfer rates. This cable is designed for use with 10GBase-T ports and critical networking equipment, including switches, routers, hubs, and network adapters. By utilizing Shielded Twisted Pair (STP) construction, this cable protects high-speed connections from electromagnetic interference and external noise. The design features stranded copper conductors and FMPE (Foam Polyethylene) insulation to minimize impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA-568-C.2 Cat6a component requirements, ensuring reliable performance for bandwidth-intensive applications. The snagless, booted RJ-45 male connectors protect the locking tab in high-density environments, while the white jacket provides a clean aesthetic for professional installations. This series is available in various lengths and colors to facilitate easy color-coding within complex network architectures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073888 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Will this Cat6A cable work for 10Gbps networking?
Yes, this C2G07388 cable is designed to support 10 Gbps data transfer rates and bandwidths up to 500 mHz.
What is the difference between the STP shielding and standard cables?
The Shielded STP construction uses shielded twisted pair wires to protect high-speed connections from noise and electromagnetic interference.
Is this cable suitable for high-density patch panels?
Yes, the snagless connector design is specifically intended to protect the RJ-45 connector's lock when used in high-density environments.
What standards does this patch cable meet?
This cable is fully tested to comply with ANSI/TIA-568-C.2 Cat6a component requirements.
What is the operating temperature range for this cable?
The cable is rated for operation in temperatures ranging from -4°F to 176°F (-20°C to 80°C).
