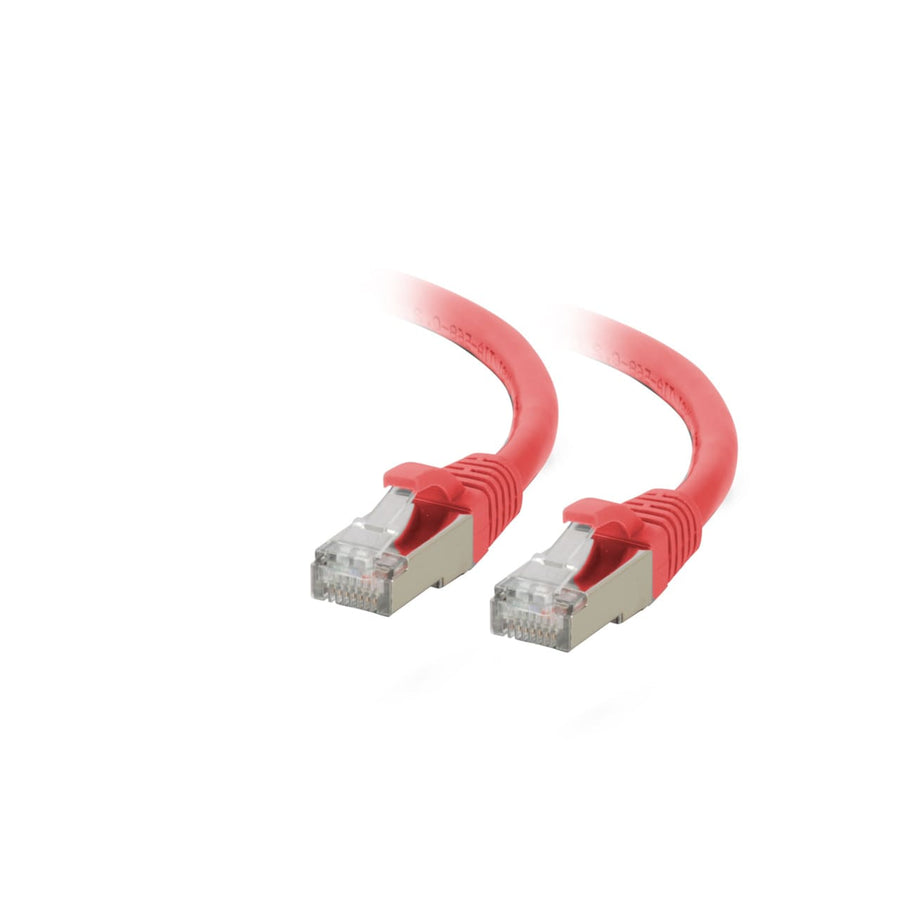

15ft (4.6m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Red
15ft Cat6A Snagless Shielded (STP) Ethernet Patch Cable in Red, supporting 10Gbps data transfer for high-speed network environments
The C2G07369 is a 15ft (4.6 m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable in red, engineered to support 10Gbps data transfer rates. This shielded twisted pair (STP) cable is designed to protect high-speed 10 Gigabit network connections from electromagnetic interference and noise, making it ideal for use with network adapters, hubs, switches, routers, and HDBaseT applications. It is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements, ensuring performance for bandwidth-intensive applications. Each cable features 26 AWG copper stranded conductors with FMPE (Foam Polyethylene) insulation to maintain twist-spacing and minimize Near-End Crosstalk (NEXT) levels. The RJ-45 male connectors include PVC snagless boots to protect the locking tabs in high-density environments. This cable features a 50 µ in gold plating specification and operates within a temperature range of -4°F to 176°F (-20°C to 80°C). Each cable includes an individual length label for easy identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073697 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
What is the maximum data transfer rate for the C2G07369?
The C2G07369 supports data transfer rates up to 10 GBPS, meeting Cat6a performance requirements.
Is this cable suitable for high-density network switches?
Yes, the snagless connector design is specifically intended to protect the RJ-45 locking tabs in high-density environments.
What is the wiring scheme used for this patch cable?
This Cat6a patch cable uses the T568B wiring scheme for its RJ-45 connections.
Does this cable provide protection against electromagnetic interference?
Yes, the shielded STP (Shielded Twisted Pair) construction is designed to protect high-speed networks from noise and EMI.
What certifications does this cable carry?
This cable is CE, REACH, and RoHS compliant.
