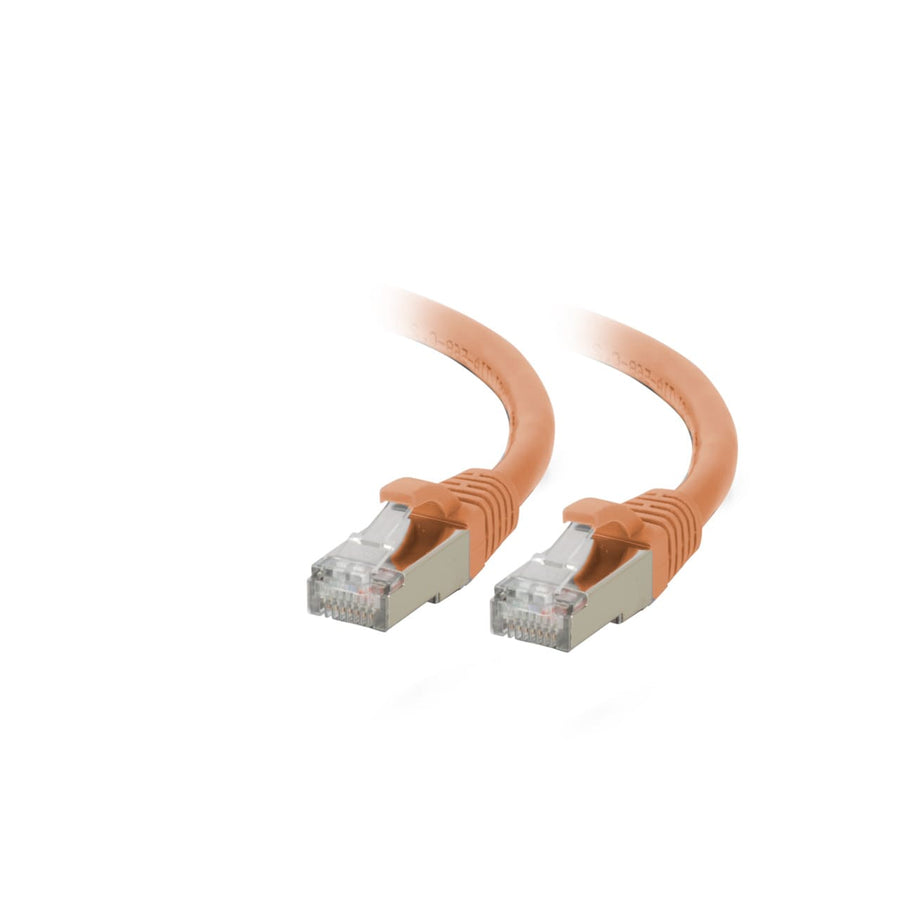

15ft (4.6m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Orange
15ft Cat6a shielded STP patch cable in orange, supporting 10Gbps data transfer rates for high-speed networking
The C2G07395 is a 15 ft (4.6 m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable in orange, specifically engineered for high-speed 10Gbps networking environments. This cable is designed to protect 10GBase-T ports and equipment—including network adapters, hubs, switches, routers, and modems—from electromagnetic interference and external noise. Each cable features shielded twisted pair (STP) construction, with individual pairs bonded together to maintain twist-spacing through to the termination point. This design is intended to minimize Near-End Crosstalk (NEXT) and reduce both impedance and structural return loss (SRL). The snagless connector design protects the RJ-45 lock in high-density installations, and the gold-plated 50 µ in contacts ensure reliable connectivity. This patch cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements and is suitable for bandwidth-intensive voice, data, and video distribution applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073956 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Yes, this Cat6a cable is designed for 10GBase-T ports, including switches, routers, hubs, and network adapters.
Yes, this Cat6a cable is designed for 10GBase-T ports, including switches, routers, hubs, and network adapters.
What is the maximum data transfer rate for the C2G07395?
The C2G07395 supports a data transfer rate of 10 Gbps for high-speed performance.
Is this cable suitable for high-density patch panels?
Yes, the snagless connector design is specifically intended to protect the RJ-45 lock in high-density environments.
Does this cable provide protection against electromagnetic interference?
Yes, the shielded STP (Shielded Twisted Pair) construction protects the network from noise and electromagnetic interference.
What certification standards does this Cat6a cable meet?
This patch cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements.
