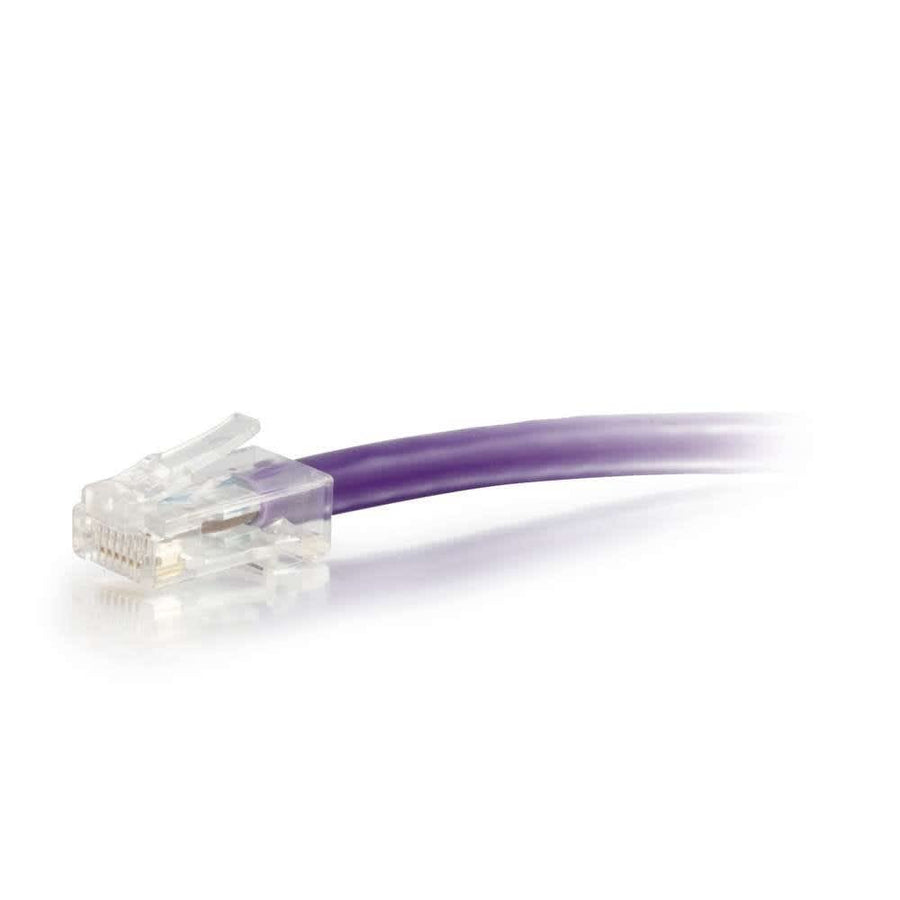

15ft (4.6m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Purple
15ft Cat6 Unshielded UTP patch cable in purple with RJ-45 male connectors
The C2G CG04223 is a 15ft (4.6m) Cat6 Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable is built to meet all Cat6 TIA/EIA standards, helping to drastically reduce impedance and structural return loss (SRL). It features stranded copper conductors, which assist in maintaining twist-spacing throughout the line up to the termination point to minimize Near-End Crosstalk (NEXT). This specific SKU is part of the C2G Cat6 Non-Booted Patch Cable Series and features a purple PVC jacket for easy color-coding in complex network environments. It utilizes a T568B wiring scheme and is rated for temperatures up to 75°C. This non-booted cable is intended for use in fast Ethernet and Gigabit computer networks where reliable performance is required for high-speed data transmission.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.4 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042235 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring standard for the C2G CG04223?
This patch cable follows the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is this C2G Cat6 cable suitable for high-speed video distribution?
Yes, it is designed for fast Ethernet and Gigabit networks requiring bandwidth-intensive data or video distribution.
What are the physical dimensions and construction of the CG04223?
The cable has a 0.24 in (6 mm) diameter, is constructed with stranded copper conductors, and features a PVC jacket.
Does the CG04223 come in other colors or lengths?
This is the purple 15ft variant; the series offers 22 different length options and 10 different color choices.
What is the temperature rating for this patch cable?
The cable is rated for operation in temperatures up to 75°C.
