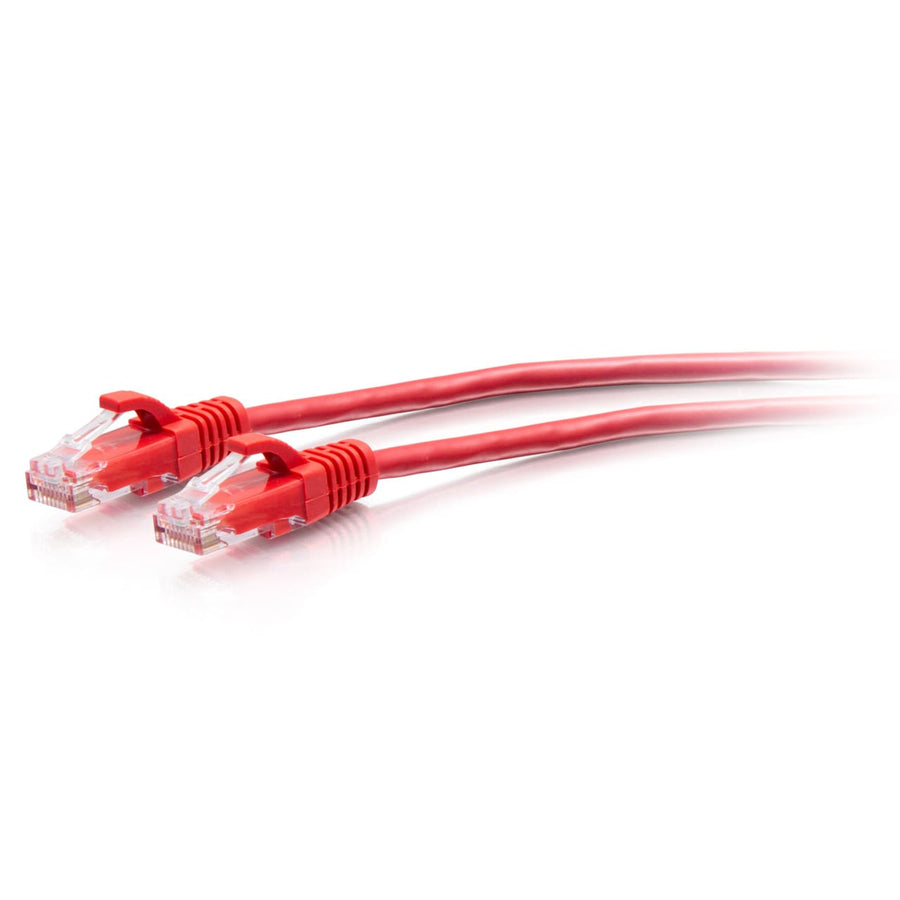

15ft (4.5m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Red
Red Cat6a slim patch cable, 15ft length, 28AWG construction for high-density networking and PoE applications
The C2G30165 is a 15ft (4.6 m) Red Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed specifically for high-density cabling environments. This cable is an effective solution for large conference rooms and datacenters where space is limited and airflow is critical. Utilizing 28AWG stranded copper conductors, this slim cable features a reduced diameter of 0.19 in (4.8 mm) to allow for increased airflow in crowded racks and greater flexibility in tight spaces. The cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. Each cable features RJ-45 male connectors with gold-plated contacts and a snagless, molded PVC boot to provide strain relief and prevent accidental disconnections during installation. This UTP cable is suitable for Power over Ethernet (PoE) and VoIP deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.63 lbs (0.3 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301653 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
42 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP4250NA$189.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Will this C2G30165 cable work for PoE applications?
Yes, the Cat6a construction is designed to support Power over Ethernet (PoE) and VoIP situations.
How does the diameter of this slim cable differ from standard Cat6?
This cable has a 0.19 in (4.8 mm) diameter, which provides a smaller surface area to allow for increased airflow compared to standard Cat6 cables.
What is the maximum data rate of the C2G30165?
This Cat6a patch cable supports data transfer rates up to 10 GBPS.
Is the C2G30165 cable shielded or unshielded?
The C2G30165 is an Unshielded UTP cable featuring an aluminum foil wrap shield.
What documentation is available for this series of cables?
You can refer to the Cat6a Slim Patch Cable Series Datasheet for full technical details.
